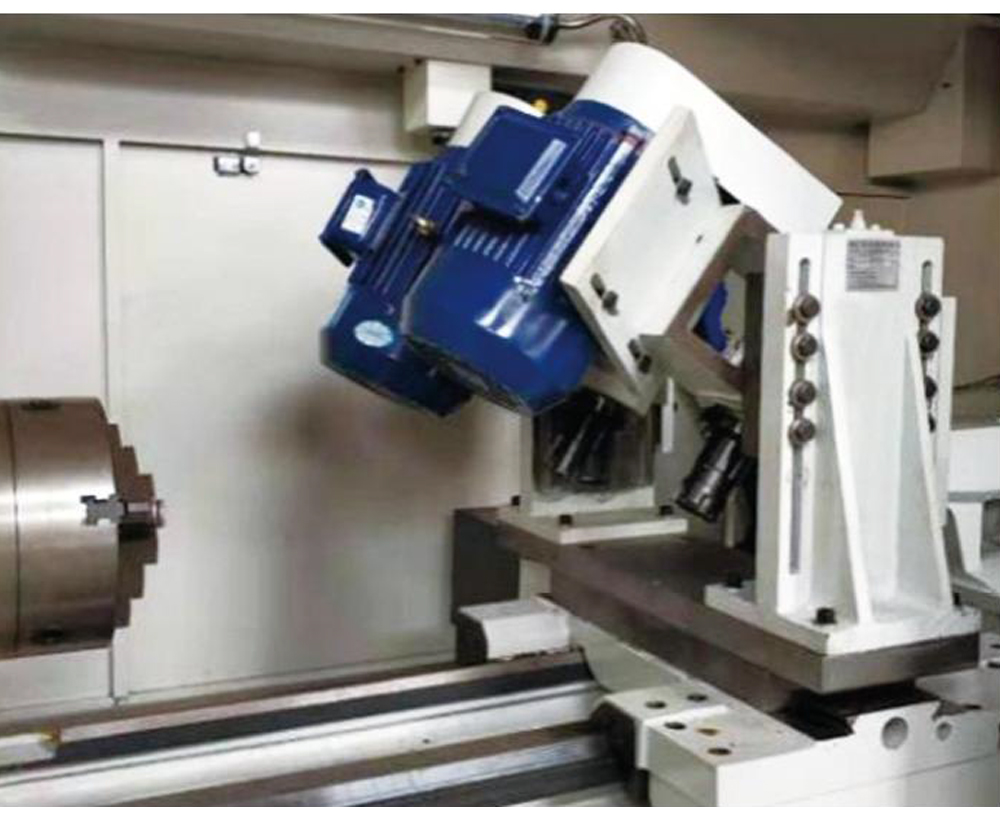

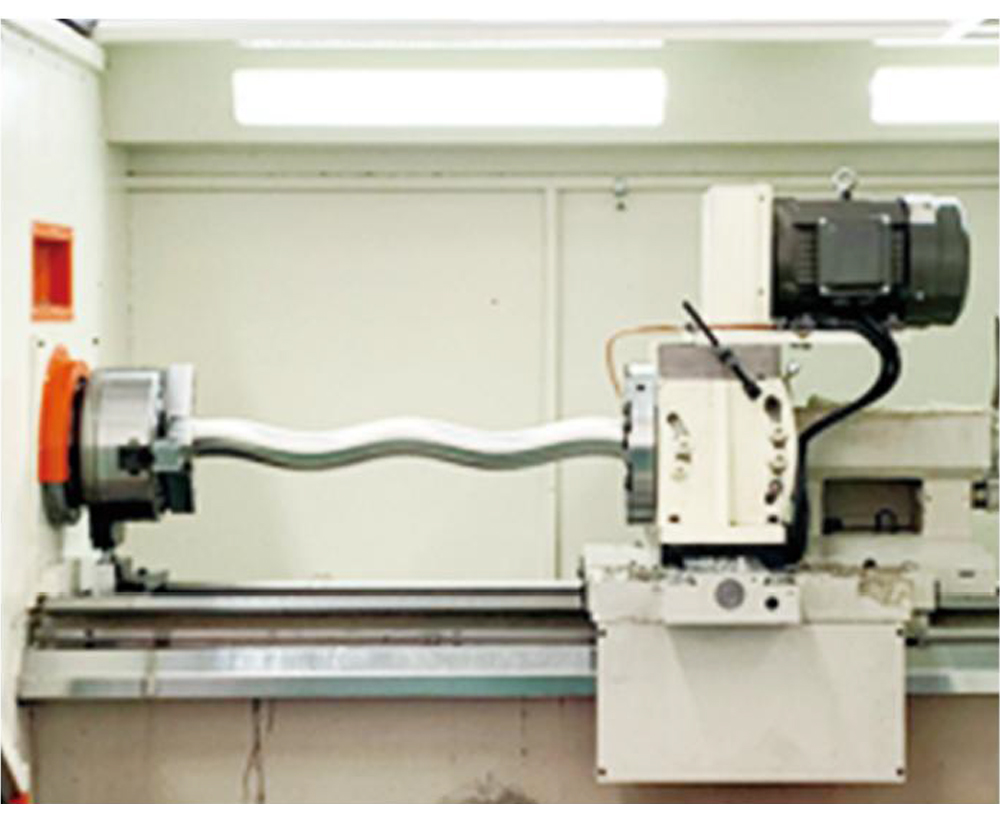

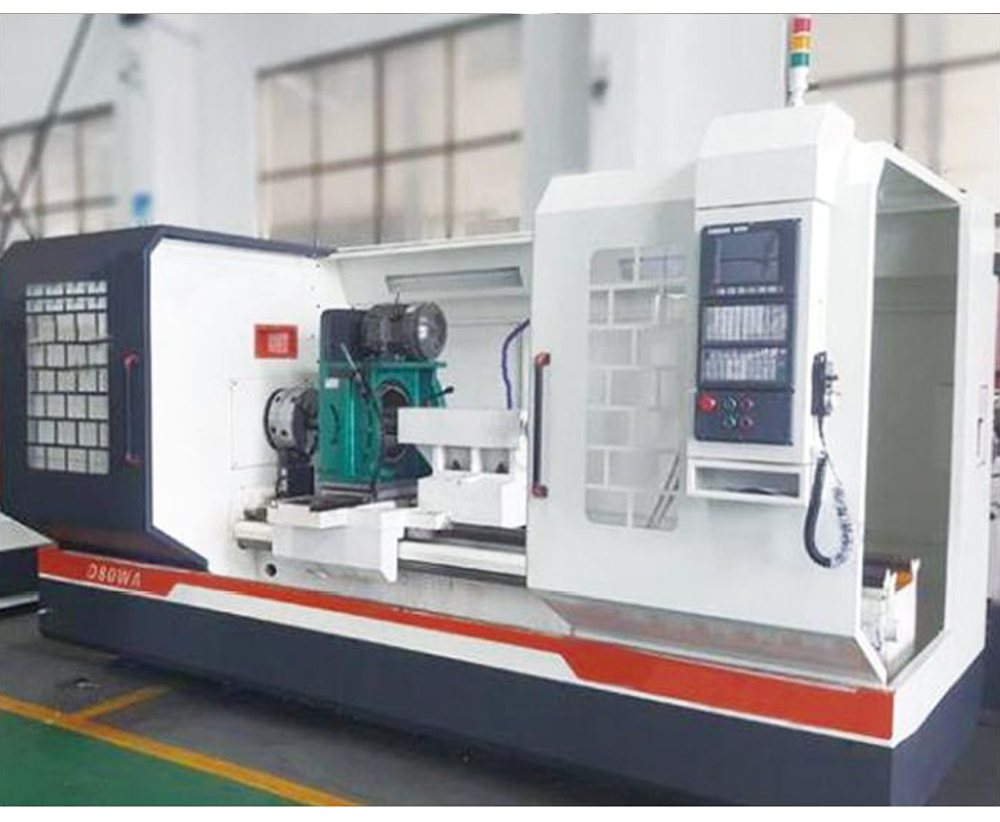

DA50 DA63 DA80 Whirlwind Milling Lathe
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
No |
Item |
Specification |
No |
Item |
Specification |
|
1 |
Lathe Axis |
A、C、X、Z Axis Three-axis linkage, A-axis is (whirlwind milling power) system frequency conversion control |
15 |
Total power |
16-32KW |
|
2 |
Control system |
Siemens 808DA15 |
16 |
Spindle and milling shaft bearing |
NSK P4 |
|
3 |
Clamping |
250(320)Hydraulic chuck |
17 |
Milling power |
4steps 4KW |
|
4 |
Lathe models |
CW6150;CW6163;CW6180 |
18 |
Quick move speed |
6/10m/min |
|
5 |
Max. Machining length |
500--40000mm |
19 |
Max.miling out side DIA |
120-200mm |
|
6 |
Max. DIA over carriage |
300-600mm |
20 |
Positioning accuracy |
≤0.015mm |
|
7 |
Max. Turning DIA |
500-1000mm |
21 |
Repeat positioning accuracy |
≤0.01mm |
|
8 |
C Axis control |
Position/Speed |
22 |
Max. Milling screw angle |
15° |
|
9 |
Spindle |
Servo Spindle |
23 |
Spindle sped |
0～1500r/min |
|
10 |
X/Z Axis control |
position control |
24 |
Positioning accuracy of rotary axis |
≤5″ |
|
11 |
Driven system |
Siemens |
25 |
Repeat positioning accuracy of rotary axis |
≤2.5″ |
|
12 |
Cutting tools |
Integral alloy coated tool |
26 |
Surface roughness |
≤Ra1.6 |
|
13 |
Max. Speed of milling spindle： |
1500r/min |
27 |
Max. Screw machine length |
500--38000MM |
|
14 |
Ball screw and liner guide way |
HIWIN or PMI |
28 |
Electric parts |
Schneider |
|
Optional robot automatic loading and unloading system, the robot can drag three lathe, including loading and unloading. |
|||||
