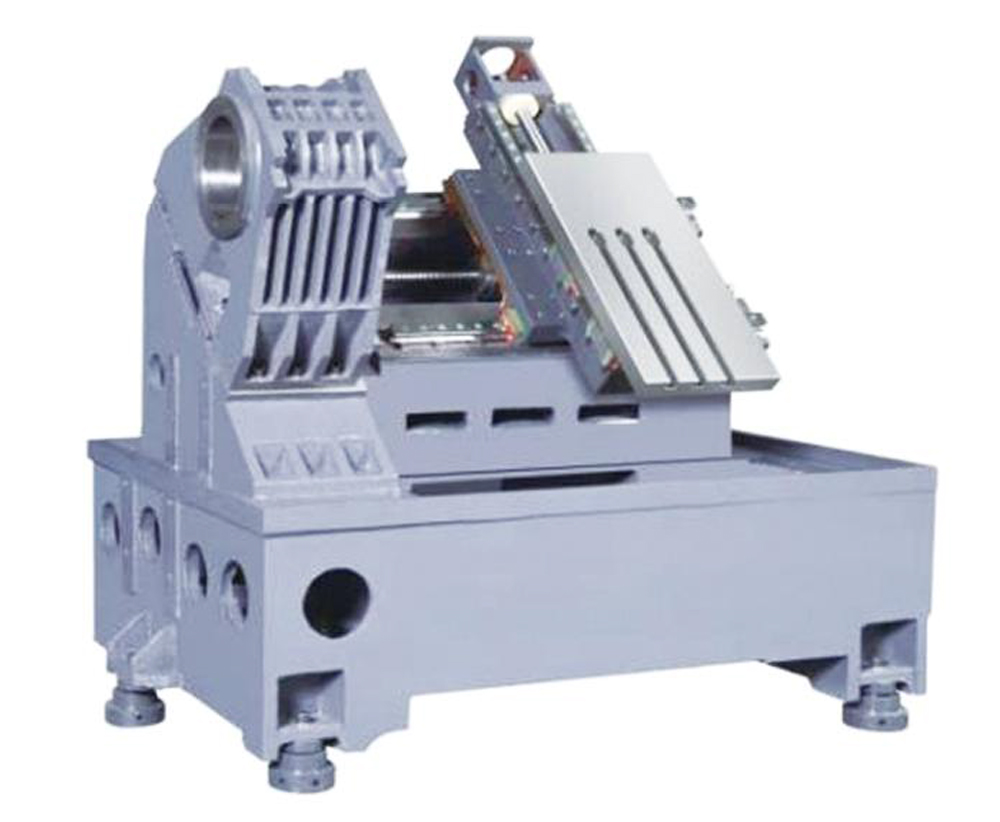

HMK460 Slant bed cnc lathe
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Model |
unit |
HMK350 |
HMK460 |
||
|
Max Swing DIA Over Bed |
mm |
Φ350 |
Φ460 |
||
|
Max.turning DIA |
mm |
Φ100 |
Φ150 |
||
|
Max. Turning length |
mm |
150 |
150 |
||
|
Max. Swing over carriage |
mm |
Φ110 |
Φ160 |
||
|
Spindle nose |
|
A2-5 |
A2-6 |
||
|
Spindle bore |
mm |
Φ56 |
Φ66 |
||
|
Through bar DIA |
mm |
Φ45 |
Φ51 |
||
|
Spindle speed range |
r/min |
0～4000 |
0～4000 |
||
|
Motor power |
kW |
5.5/7.5 |
11/15 |
||
|
Stand hydraulic collect chuck |
|
6 inch |
8 inch |
||
|
X-axis Rapid moving |
m/min |
24 |
24 |
||
|
Z-axis Rapid moving |
m/min |
24 |
24 |
||
|
X-axis Stroke |
mm |
440 |
430 |
||
|
Z-axis Stroke |
mm |
300 |
410 |
||
|
Guide way type |
|
Liner |
Liner |
||
|

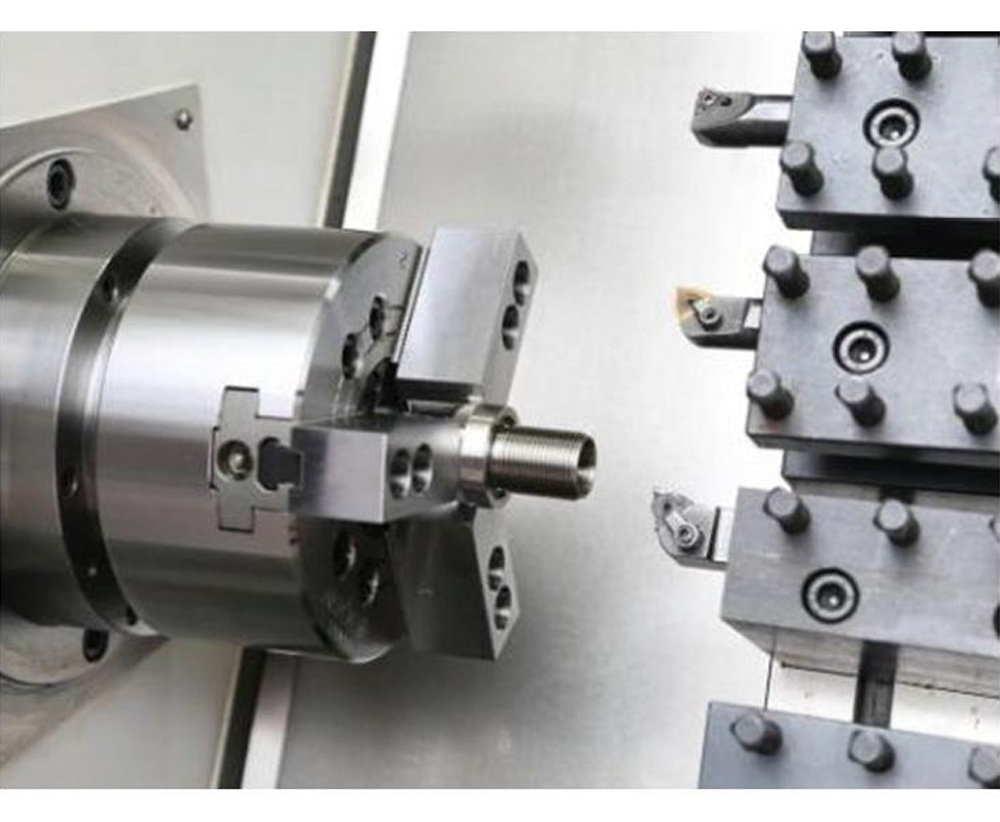

Turret |
|
Row type |
Row type |
||
|
Tool size |
Boring bar diameter |
mm |
20×20 |
25×25 |
|
|
Cutter head choose the nearesttool |
mm |
Ф20 |
Ф25 |
||
|
Precision |
|
IT6 |
IT6 |
||
|
Workpiece roundness |
mm |
0.002/Ф70 |
0.002/Ф70 |
||
|
Workpiece flatness |
mm |
0.006/Ф100 |
0.006/Ф100 |
||
|
Surface roughness of machined workpiece |
μm |
Ra1.6 |
Ra1.6 |
||
|
positioning accuracy |
mm |
X/Z Axis 0.01/0.006 |
X/Z Axis 0.01/0.006 |
||
|
Repeatability |
mm |
X/Z Axis 0.006/0.005 |
X/Z Axis 0.006/0.005 |
||
|
Machine weight |
Total weight |
kg |
2500 |
3000 |
|
|
Machine size |
(LxWxH) |
mm |
2222×1450×1722 |
2648×1433×1845 |
|
