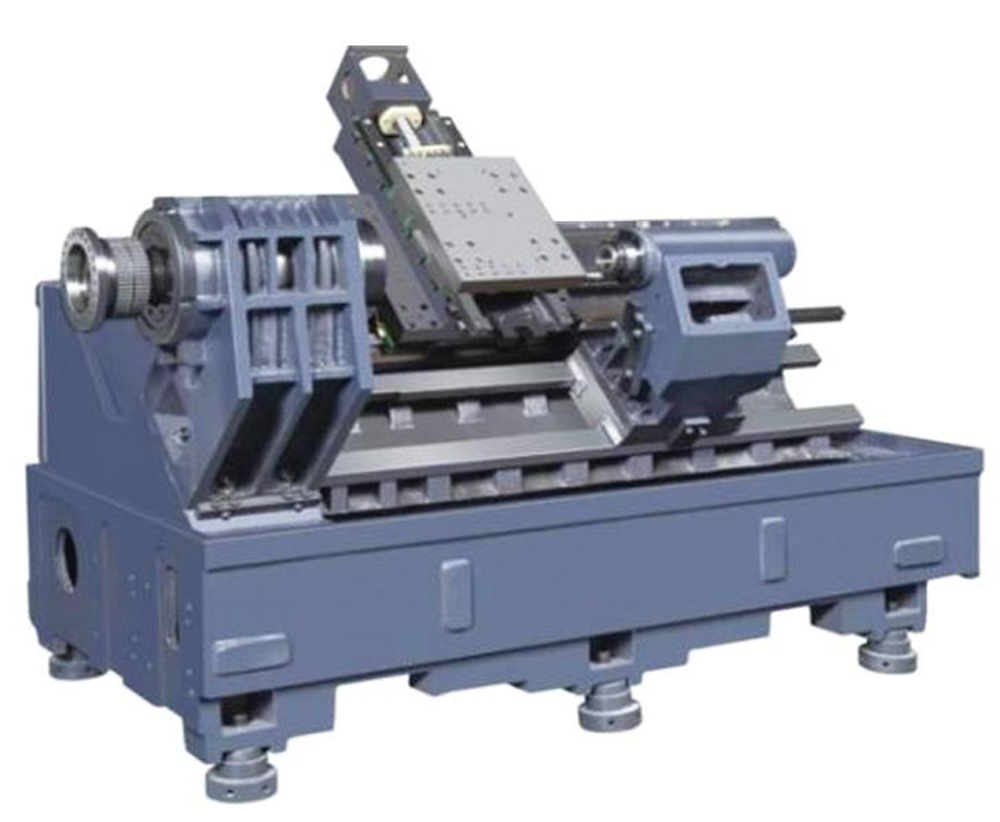

HMT520L
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Model |
unit |
HMT520 |
HMT520 L |
||
|
Max Swing DIA Over Bed |
mm |
Φ520 |
Φ520 |
||
|
Max.turning DIA |
mm |
Φ310 |
Φ360 |
||
|
Max. Turning length |
mm |
500 |
600 |
||
|
Max. Swing over carriage |
mm |
Φ260 |
Φ260 |
||
|
Spindle nose |
|
A2-6 |
A2-6 |
||
|
Spindle bore |
mm |
Φ66 |
Φ66 |
||
|
Through bar DIA |
mm |
Φ51 |
Φ51 |
||
|
Spindle speed range |
r/min |
0～3500 |
0～3500 |
||
|
Motor power |
kW |
11/15 |
11/15 |
||
|
Stand hydraulic collect chuck |
|
8 inch |
8 inch |
||
|
X-axis Rapid moving |
m/min |
22 |
22 |
||
|
Z-axis Rapid moving |
m/min |
22 |
22 |
||
|
X-axis Stroke |
mm |
180 |
230 |
||
|
Z-axis Stroke |
mm |
550 |
700 |
||
|
Guide way type |
|
Liner |
Liner |
||
|
Turret |
|
8 station |
8 station |
||
|
Tool size |
Boring bar diameter |
mm |
25×25 |
25×25 |
|
|
Cutter head choose the nearest tool |
mm |
Ф32 |
Ф32 |
||
|
positioning accuracy |
mm |
X/Z Axis 0.01/0.006 |
X/Z Axis 0.01/0.006 |
||
|
Repeatability |
mm |
X/Z Axis 0.006/0.005 |
X/Z Axis 0.006/0.005 |
||
|
Workpiece roundness |
mm |
0.002/Ф70 |
0.002/Ф70 |
||
|
Machine weight |
Total weight |
kg |
4500 |
4500 |
|
|
Machine size |
(LxWxH) |
mm |
2665×1830×1900 |
2665×1830×1900 |
|
