NT203-205
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool

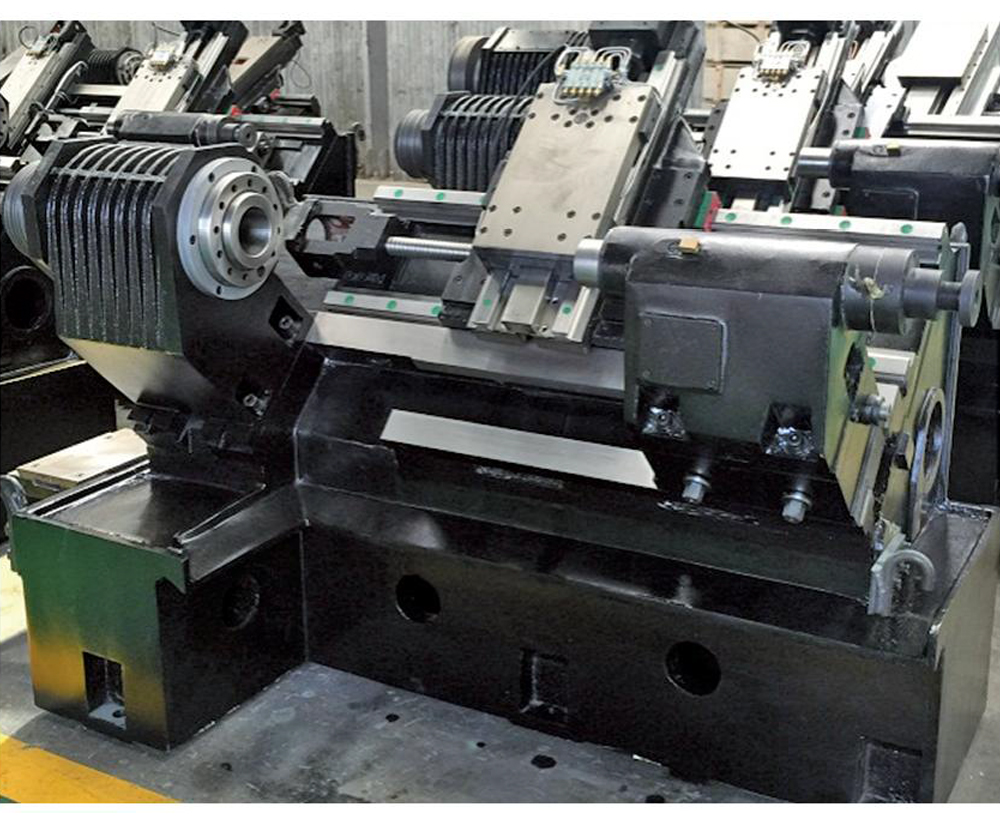

Key Features:
|
Item |
Specification |
Unit |
NT-35/160 |
NT-200/200L |
NT-203/205 |
|
Capacity |
Chuck size |
/ |
6’’ |
8’’ |
8’’ |
|
Max. swing dia. over bed |
mm |
Φ430 |
Φ510 |
Φ550 |
|
|
Max. swing dia. over slide |
mm |
Φ250 |
Φ260 |
Φ290 |
|
|
Max. turning length |
mm |
150 |
300/500 |
500 |
|
|
Max. turning dia. |
mm |
Φ250 |
Φ360 |
Φ380 |
|
|
Spindle |
Spindle bore |
mm |
Φ46 |
Φ66 |
Φ63 |
|
Spindle end type |
/ |
A2-4 |
A2-5 |
A2-6 |
|
|
Spindle speed |
rpm |
5000 |
4000 |
4500 |
|
|
Max. bar through dia. |
mm |
36 |
52 |
52 |
|
|
Spindle motor power |
kw |
5.5 |
11/15 |
11/15 |
|
|
X/Z axes |
X axes travel |
mm |
150 |
200+10 |
190+10 |
|
Z axes effective travel |
mm |
180 |
360/535 |
550 |
|
|
X/Z axes rapid moving speed |
m/min |
28 |
30 |
30 |
|
|

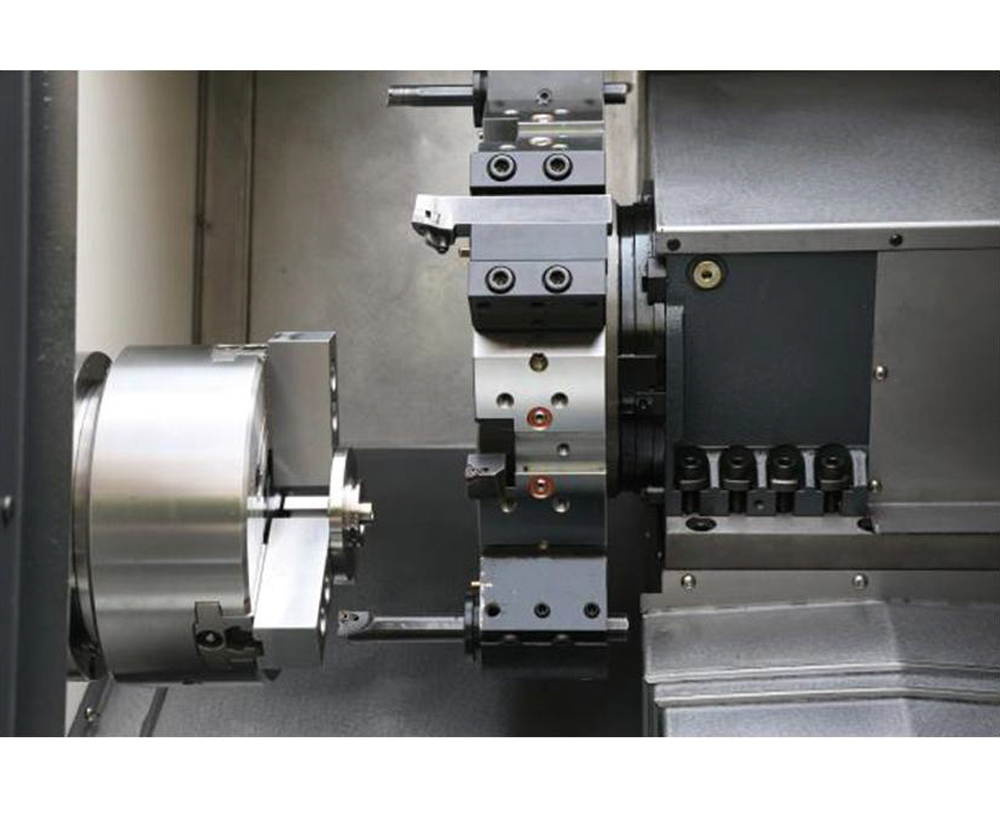

Tool turret |
Tool qty |
/ |
8 |
8/12* |
8/12* |
|
Vicinal tool changing time |
s |
0.4 |
0.4 |
0.2 |
|
|
Farthest tool changing time |
s |
0.57 |
0.57 |
0.5 |
|
|
Tool shank size |
mm |
25×25 /Φ16 |
25×25(8T)/ 20×20(12T*) Φ40( 8T)/ Φ32( 12T*) |
25×25( 8T)/ 20×20( 12T*) Φ40( 8T)/ Φ32(12T*) |
|
|
Tailstock |
Tailstock quill taper |
/ |
MT4# |
MT4# |
MT4# |
|
Tailstock quill dia./travel |
mm |
Φ70/90 |
Φ70/90 |
Φ70/90 |
|
|
Accuracy |
Finish turning roughness |
mm |
Ra0.4~1.6 |
Ra0.4~1.6 |
Ra0.4~1.6 |
|
Finish turning roundness |
mm |
≤0.003 |
≤0.003 |
≤0.003 |
|
|
Positioning accuracy(X/Z) |
mm |
0.005/0.008 |
0.005/0.008 |
0.005/0.008 |
|
|
Repeat positioning accuracy(X/Z) |
mm |
0.002/0.004 |
0.002/0.004 |
0.002/0.004 |
|
|
Others |
Overall size |
mm |
1900×1500×16000 |
1975×1600×1690 |
2500×1720×1740 |
|
N.W. |
kg |
2700 |
3050/3300 |
3050/3300 |
