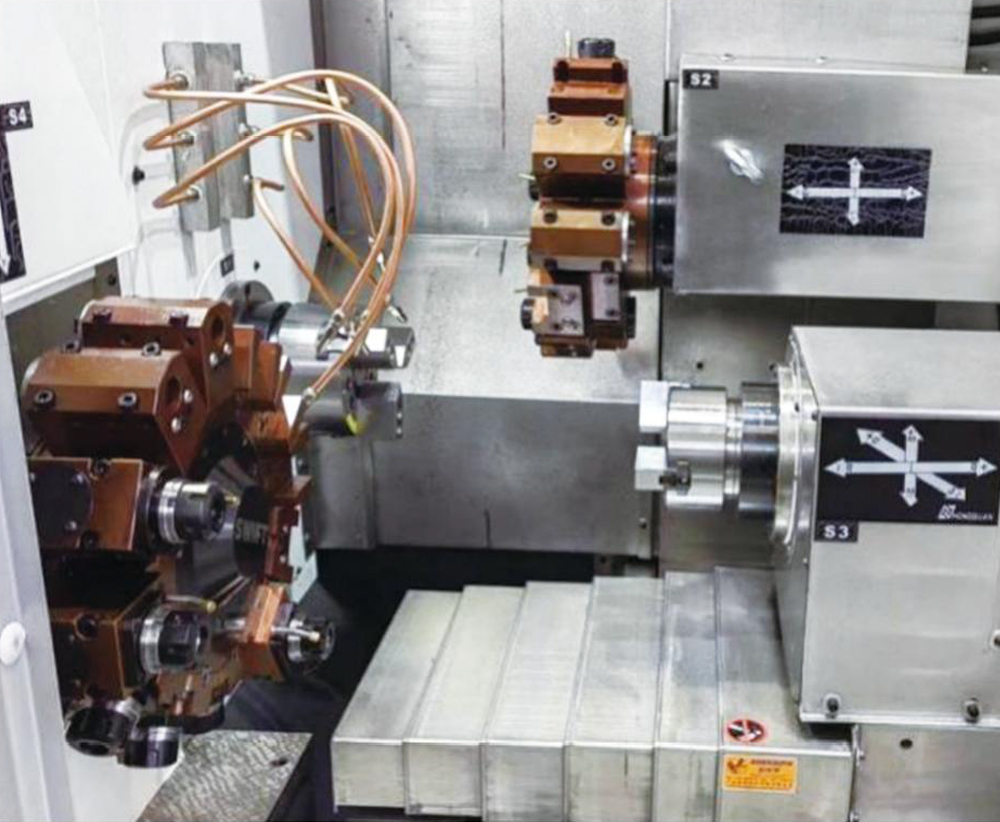

HQ-46/25P
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Model |
Name |
HQ-46/25P |
|
Power |
C1/C2 Spindle motor |
11KW Servo/7.5KW Servo |
|
C1/C2 Spindle speed |
4000/4000rpm |
|
|
X1/X2/Z1/Z2 Axis servo motor |
2.4KW |
|
|
Z1 Axis servo motor |
2.4KW |
|
|
Z2 Axis servo motor |
2.4KW |
|
|
Y Axis servo motor |
1.7KW |
|
|
Power tool motor |
3.1KW |
|
|
Control |
Taiwan Syntec |
220TB |
|
Machining Range |
Spindle bore diameter |
C1Φ56mm / C2Φ46mm |
|
Max.bar diameter |
C1Φ45mm/C2Φ35mm |
|
|
Max. Swing diameter over bed |
Φ160 mm |
|
|
Max. Machining length |
320 mm |
|
|
X1 Axis travel |
800mm |
|
|
X2 Axis travel |
800mm |
|
|
Z1 Axis travel |
380mm |
|
|
Z2 Axis travel |
320mm |
|
|
X /ZQuick move speed |
20m/mim |
|
|
Accuracy |
X / Z Positioning accuracy |
0.003 mm |
|
X /Z Repeat positioning accuracy |
0.003 mm |
|
|
Spindle runout |
0.003mm |
|
|
Others |
LxWxH |
2487*1784*2050 |
|
Net weight |
约5500kg |
|
No. |
Item |
original |
qty |
|
|
1 |
Control |
Taiwan Syntec 220TB（10 inch Screen） |
1 |
|
|
2 |
Power system |
X1/X2/Z1/Z2 Axis |
Taiwan Syntec servo motor 2.4KW |
1X4 |
|
|
|
Y Axis |
Taiwan Syntec servo motor 1.7K Wwith brake |
1 |
|
Power tool |
Taiwan Syntec servo motor 3.1KW |
2 |
||
|
C1 Spindle |
Keteng servo 11KW |
1 |
||
|
C2 Spindle |
Keteng servo 7.5KW
KW总线 |
1 |
||
|
3 |
Feeding system |
X1 Axis |
HIWIN Ball liner guide HGH30#/HIWIN Ball screw R3210 |
1 |
|
X2 Axis |
HIWIN Ball liner guide HGH30#/HIWIN Ball screw R3210 |
1 |
||
|
Z1 Axis |
HIWIN Ball liner guide HGH35#/HIWIN Ball screw R3210 |
1 |
||
|
Z2 Axis |
HIWIN Ball liner guide HGH30#/HIWIN Ball screw R3210 |
1 |
||
|
4 |
Bearing |
X1/X2 Axis |
NSK/FAG/SKF |
2 |
|
Z1/Z2 Axis |
NSK/FAG/SKF |
2 |
||
|
5 |
Spindle |
46# Electric spindle+25# Electric spindle |
2 |
|
|
6 |
Chuck |
6 inch hydraulic chuck |
1 |
|
|
7 |
Chuck |
5 inch hydraulic chuck |
1 |
|
|
8 |
Turret |
12 station servo turret BMT40 with Y axis+12 station BMT40 |
2 |
|
|
9 |
Living tool |
BMT90 degree 6pcs，BMT0 degree 6pcs |
1 |
|
