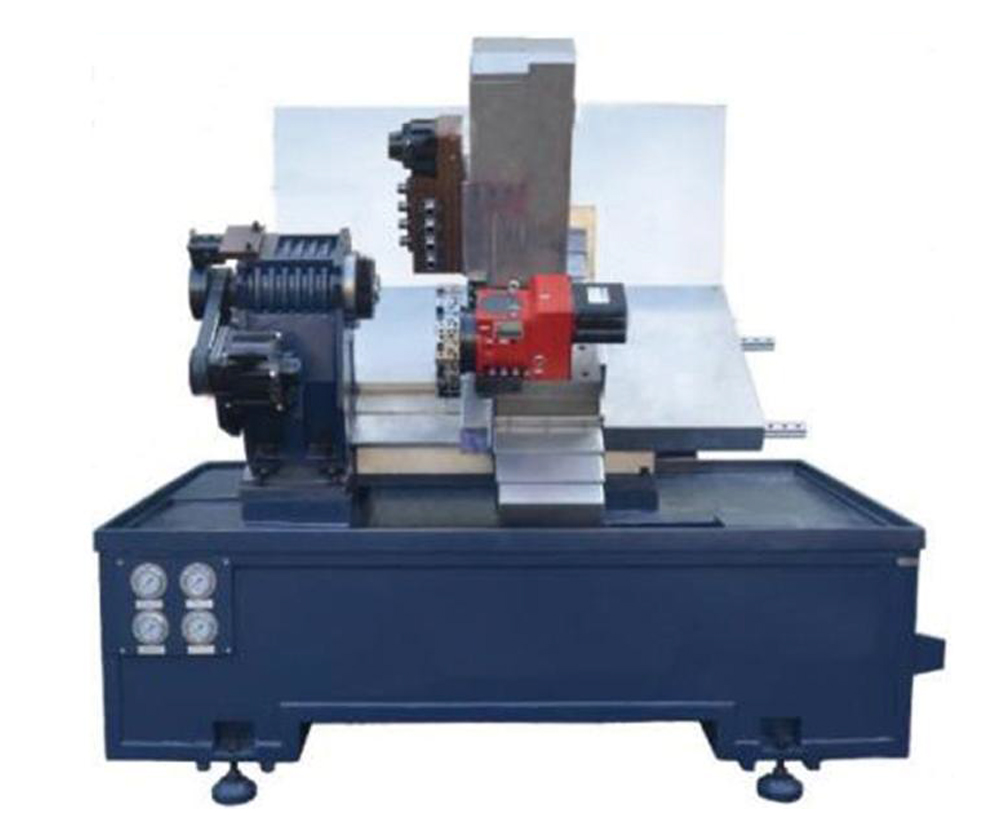

CK36CY
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Specification |
Unit |
CK36CY |
CK46D-8 |
|
Max.swing over bed |
mm |
360 |
450 |
|
Max.swing over cross slide |
mm |
90 |
130 |
|
Max.processing length |
mm |
200/150(Miling) |
450 |
|
X/Z/Y axis max.travel |
mm |
750/260/80 |
500/450/240 |
|
Spindle nose |
|
A2-4 |
A2-5 |
|
Spindle bore |
mm |
46 |
56 |
|
Max.spindle speed |
rpm |
4000 |
4500 |
|
Chuck |
inch |
10 |
10 |
|
Spindle motor power |
kw |
3.7 |
7.5 |
|
X/Z axis repeatability |
mm |
+/-0.003 |
+/-0.003 |
|
X/Z axis feed motor torque |
N.M |
7.5/7.5 |
7.5/7.5 |
|
X/Z/Y rapid traverse |
MM/min |
24000/24000/24000 |
24000/24000/24000 |
|
Tailstock taper |
|
--- |
MT5 |
|
Tool post type |
mm |
Row tool |
8 station hydraulic turret |
|
Tool post size |
|
20x20 |
25x25 |
|

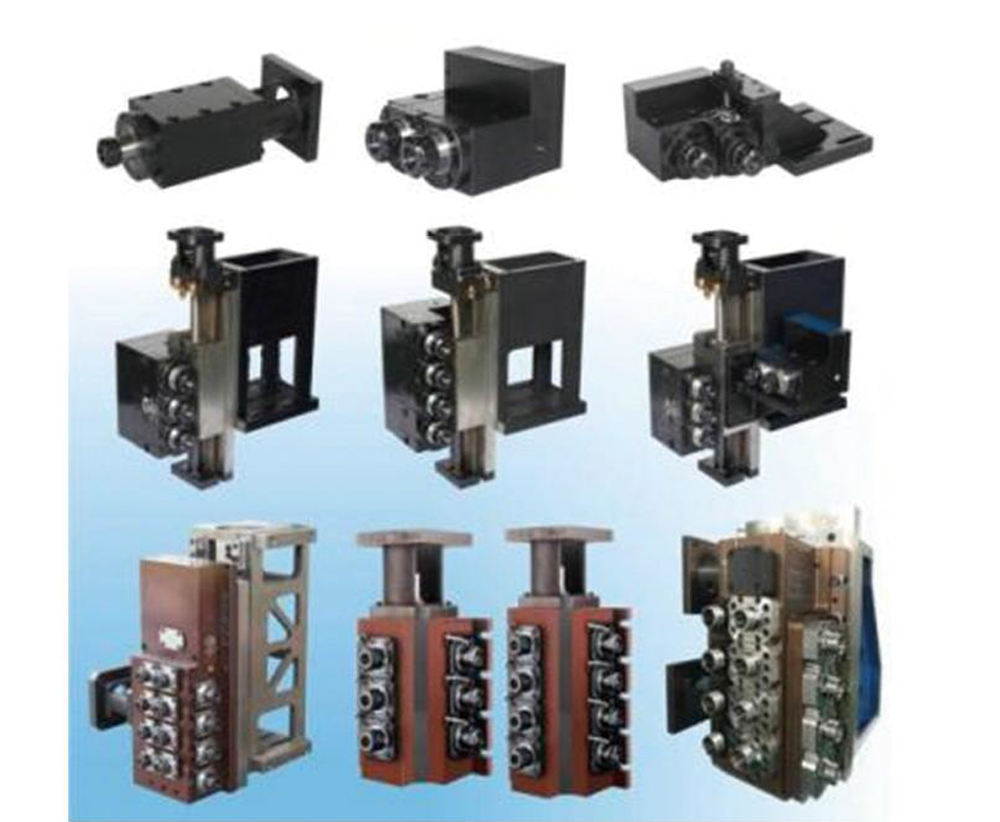

Living toolss type |
|
nose 2+side 2 |
nose 4+side 4 |
|
Living tools power |
kw |
0.85 |
1.3 |
|
Living tools speed |
rpm |
3000rpm |
3000rpm |
|
Guide rail movement way |
|
Linear guide rail |
Linear guide rail |
|
main motor power |
KW |
3.7 |
7.5 |
|
Machine dimensions(L*W*H) |
mm |
2050X1350X1800 |
2500X1750X1900 |
|
Weight |
kg |
2350 |
3000 |
