CX1500
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

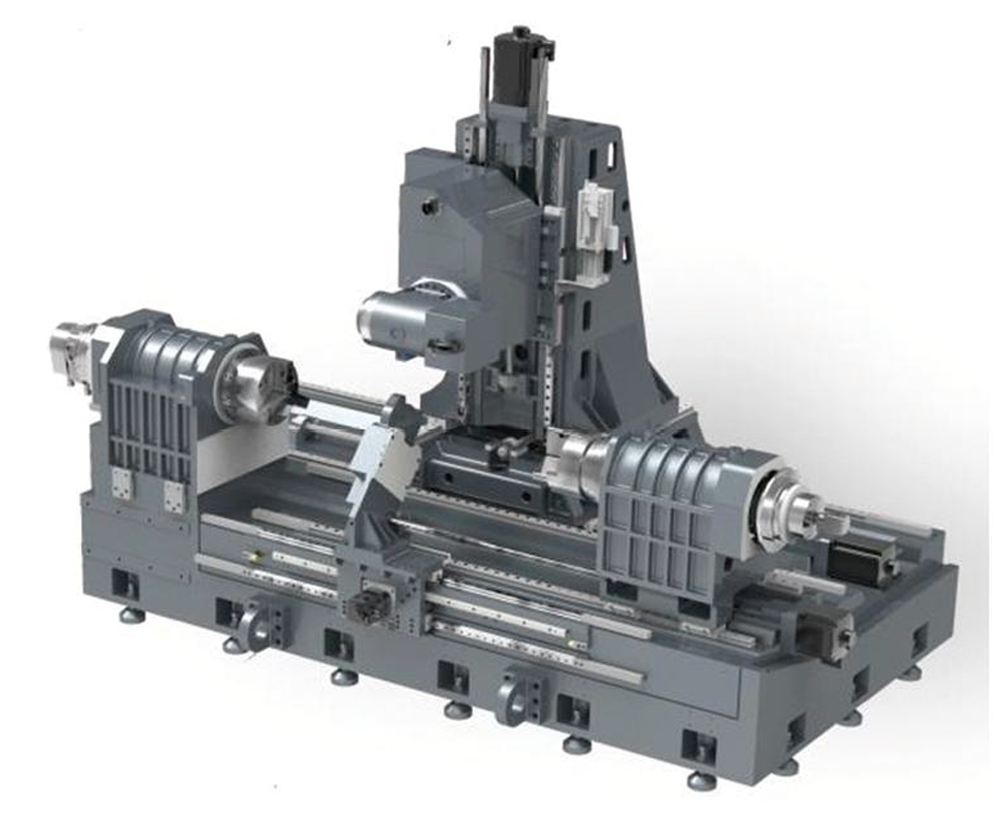

Dual-spindle dual-channel turning center. Equipped with a Y-axis milling and pendulum spindle head to realize the combined machining capability of milling and milling.The bed mineral material is more stable and improves efficiency
|
Model |
Item |
unit |
CX1500 |
|
Capacity |
Max. Swing over carriage |
mm |
φ460 |
|
|
Center moment (C) tool nose moment (W) |
mm |
1550 |
|
|
Max, turning diameter |
mm |
φ600 |
|
Stroke |
X-axis movement (up and down) |
mm |
-20~+760 |
|
|
Z axis movement (left and right) |
mm |
1900 |
|
|
Y-axis movement (front and back) |
mm |
+225 |
|
|
W axis movement |
mm |
1500 |
|
|
ZB axis movement |
mm |
1200 |
|
|
C axis control angle |
deg |
360 |
|
|
B axis control angle |
deg |
-120 |
|
Spindle |
Rated speed (C1 /C2 /MAxis |
rpm/min |
850/850/4000 |
|
|
Maximum speed C1 /C2 axis/M axis |
rpm/min |
3000/3000/12000 |
|
|
Maximum torque C1 /C2 s/M axis |
N.M |
415/415/90 |
|
Feeding |
Rapid feed rate X, Y, Z, W axis |
m/min |
36/36/36 |
|
|
Rapid feed speed ZB axis |
m/min |
30 |
|
|
Swing head speed B axis |
rpm/min |
50 |
|
Steady rest(ZB Axis) |
Clamping range |
mm |
35-245 |
|
|
working pressure range |
bar |
8-60 |
|
|
Maximum clamping elasticity |
KN |
15 |
|
|
Alignment accurac |
mm |
<0.05 |
|
|
Repeat for maximum accuracy |
mm |
<0.01 |
|
|
Max. Clamping speed |
m/s |
715 |
|
|
Weight |
Kg |
102 |
|
Tool magazine |
Tool shaft |
|
HSK A63 |
|
|
Tool number |
把 |
40 |
|
|
Max, tool diameter |
mm |
80 |
|
|
Max. Toll length |
mm |
300 |
|
|
Max, tool weight |
Kg |
8 |
|
Motor |
Spindle motor(C) |
KW |
37/37 |
|
|
Tools spindle motor(M) |
KW |
18 |
|
|
X、Z、Y、B、ZB motor |
KW |
4.5/4.5/4.5/4.5/4.5/1 |
|
Machine size |
Size |
mm*mm |
3510+2100x2750 |
|
|
Weight |
Kg |
15000 |
|
Control |
|
|
GSK25i or GN62 |
