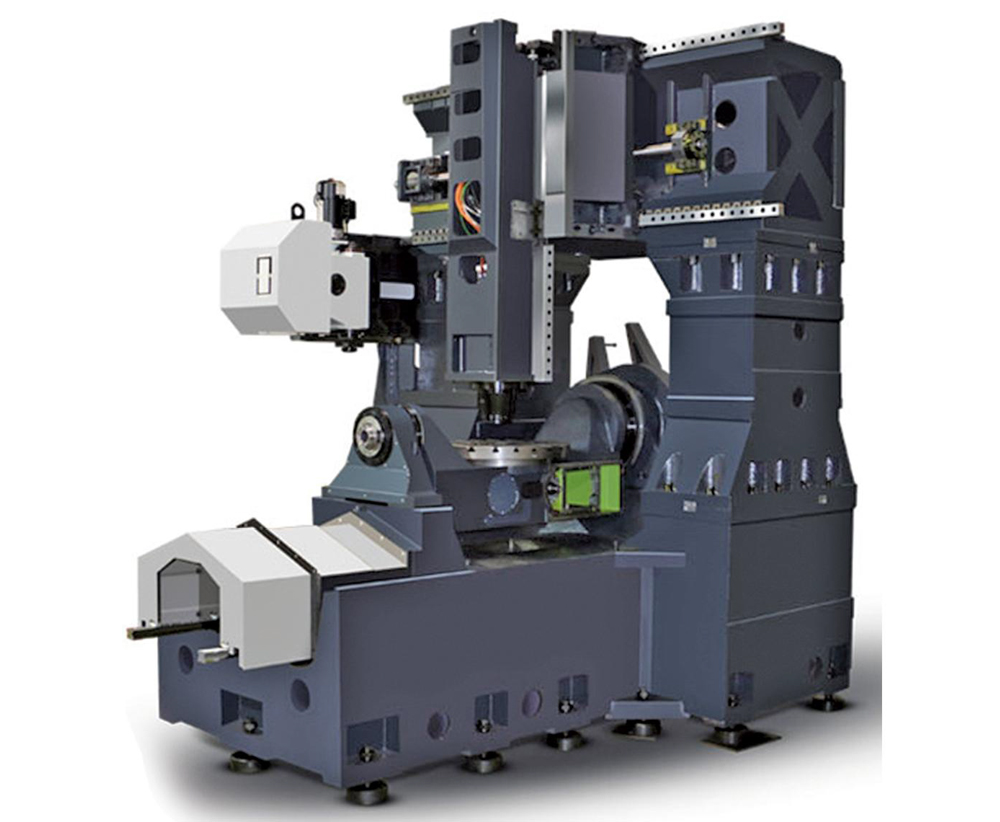

MU-400
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Items |
Unit |
MU400 |
MU-630 |
MU-700D |
MU-700DT |
|
CNC System |
|
GSK 25i OR GN 62 |
GSK 25i OR GN 62 |
GSK 25i OR GN 62 |
GSK 25i OR GN 62 |
|
X/Y/Z-axis travel |
mm |
450/500/350 |
700/1180/550 |
700/1180/550 |
700/1180/550 |
|
A/C-axis travel |
Degree |
±120/360 |
±120/360 |
±120/360 |
±120/360 |
|
Distance from spindle end face to worktable (when A-axis is at 0°) |
mm |
150-500 |
150-700 |
150-700 |
150-700 |
|
Worktable size |
mm |
Φ400 |
Φ630 |
Φ700 |
Φ700 |
|
Max.load |
kg |
120 |
500 |
400 |
400 |
|
Spindle(standard) |
|
|
|
|
|
|
Max.spindle speed/taper |
rpm |
30000/HSK-E40 |
18000/HSK-A630 |
18000/HSK-A630 |
18000/HSK-A630 |
|
Spindle power (S1/S6-40%) |
KW |
10/13 |
20/28 |
20/28 |
20/28 |
|
Torque (S1/S6-40%) |
N.m |
5.5/7.1 |
58/81.2 |
58/81.2 |
58/81.2 |
|
Feed system |
|
|
|
|
|
|
X/Y/Z-axis rapid traverse |
m/min |
30/30/20 |
36/36/30 |
36/36/30 |
36/36/30 |
|
Max.cutting feed rate |
m/min |
10 |
20 |
20 |
20 |
|
Acceleration |
m/s2 |
5 |
0.8 |
0.8 |
0.8 |
|
A/C-axis rapid traverse speed |
rpm |
|
20/30 |
20/80 (C-axis DDR) |
20/80 (C-axis DDR) |
|
Rated torque A/C |
N.m |
|
2080/1400 |
2080/860 |
2080/1080 |
|
Static torque A/C |
N.m |
|
3625/1770 |
3625/1470 |
3625/1510 |
|
Brake torque A/C |
N.m |
|
5000/3500 |
5000/3500 |
5000/3500 |
|
Positioning precision (GB17421.22000) |
|||||
|
X/Y/Z |
mm |
0.006/0.006/0.003 |
0.008/0.008/0.008 |
0.008/0.008/0.008 |
0.008/0.008/0.008 |
|
A/C |
ARCSEC |
8/4 |
12/12 |
12/12 |
12/12 |
|
Repeatability (GB17421.22000) |
|
|
|
|
|
|
X/Y/Z |
mm |
0.004/0.004/0.004 |
0.004/0.004/0.004 |
0.004/0.004/0.004 |
0.004/0.004/0.004 |
|
A/C |
ARCSEC |
6/6 |
6/6 |
6/6 |
6/6 |
|
ATC |
|
|
|
|
|
|
Number of tools |
Pcs |
16T |
24T |
24T |
24T |
|
Tool change time (tool-tool) |
sec |
4.5S |
2.5S |
2.5S |
2.5S |
|
Max.tool length |
mm |
200 |
300 |
300 |
300 |
|
Max.tool diameter (none adjacent) |
mm |
Φ60/Φ100 |
Φ60/Φ120 |
Φ60/Φ120 |
Φ60/Φ120 |
|
Max.tool weight |
kg |
3 |
8 |
8 |
8 |
|
Machine size |
|
|
|
|
|
|
Height |
mm |
3100 |
3700 |
3700 |
3700 |
|
Area(length×width) |
m㎡ |
3100×2400 |
3400×3000 |
3400×3000 |
3400×3000 |
|
Net weight |
kg |
8000 |
13000 |
13000 |
13000 |
|
Power |
kw |
25 |
50 |
55 |
60 |
