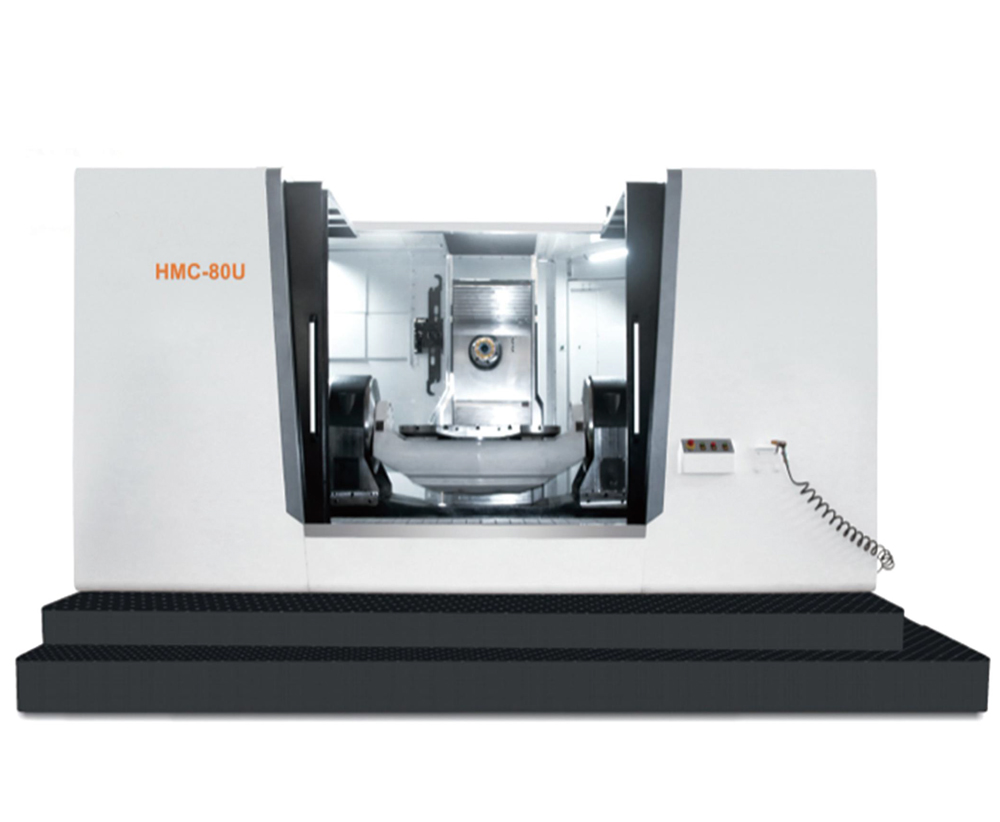

HMC-63U HMC-80U
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Model |
Item |
Unit |
HMC-63U |
HMC-80U |
HMC-125U |
||
|
Work table |
Table size |
mm |
630×630 |
630xΦ800 |
Φ1250X1100 |
||
|
Travel |
Table travel（X axis） |
mm |
800 |
850 |
1350 |
||
|
Spindle travel（Y axis） |
mm |
1000 |
1045 |
1000 |
|||
|
Column travel（Z axis） |
mm |
1000 |
1000 |
900 |
|||
|
A axis travel |
° |
—120~+120 |
—105~+45 |
—100~+45 |
|||
|
B axis travel |
° |
n×360 |
n×360 |
n×360 |
|||
|
Horizontal |
Spindle nose to table center |
mm |
200-1200 |
200-1200 |
200-1200 |
||
|
Spindle center to table surface |
mm |
—20~980 |
—80~965 |
—80~920 |
|||
|
Vertical |
Spindle nose to table surface |
mm |
200~1200 |
200~1200 |
230~1130 |
||
|
Spindle center to table center |
mm |
—80~920 |
—110~935 |
—110~890 |
|||
|
Feed |
X/Y/Z axis Max. Quick move speed |
mm/min |
24000 |
24000 |
24000 |
||
|
X/Y/Z axis Max. Feeding speed |
mm/min |
10-10000 |
10-10000 |
10-10000 |
|||
|
A/B axis Max. Turning speed |
r/min |
20/60 |
20/60 |
20/60 |
|||
|
Spindle |
Max. Spindle speed |
r/min |
20～6000 |
20～6000 |
20～6000 |
||
|
Spindle motor |
Kw |
15/18.5 |
15/18.5 |
15/18.5 |
|||
|
Spindle rated torque/Max. |
Nm |
120/210 |
120/210 |
120/210 |
|||
|
Spindle taper |
|
BT50 |
BT50 |
BT50 |
|||
|
Tool shank |
|
BT50 |
BT50 |
BT50 |
|||
|
Pull pin type |
|
MAS 403 P50T-1 |
MAS 403 P50T-1 |
MAS 403 P50T-1 |
|||
|
AB axis torque |
A axis Max. torque/Clamp torque |
Nm |
2690/5000 |
2690/5000 |
2690/5000 |
||
|
B axis Max. torque/Clamp torque |
Nm |
1250/3990 |
1250/3990 |
1250/3990 |
|||
|
Tool magazine |
Cam/chain magazine |
pcs |
30/40/60/80 |
30/40/60/80 |
30/40/60/80 |
||
|
positioning accuracy |
X/Y/Z axis positioning accuracy |
um |
10 |
10 |
10 |
||
|
AB axis positioning accuracy |
″ |
8 |
8 |
8 |
|||
|
X/Y/Z axis repeat positioning accuracy |
um |
5 |
5 |
5 |
|||
|
AB axis repeat positioning accuracy |
″ |
5 |
5 |
5 |
|||
|
Others |
Machine size: LxWxH |
mm |
6123×4807×4016 |
6123×4807×4016 |
6505×5623×4105 |
||
|
Machine weight |
Kg |
20000 |
20000 |
25000 |
|||
|
|
|
|
|
|
|
||
|
2、Optional |
|||||||
|
Model |
HMC63U |
HMC80U |
|||||
|
Double drivingA axis |
Optional |
Optional |
|||||
|
Big torque spindle |
Optional |
Optional |
|||||
|
Spindle with coolant water from center |
Optional |
Optional |
|||||
|
Inner shield flushing function |
Optional |
Optional |
|||||
|
|
|||||||
|
3、Main parts of machine |
|||||||
|
Accessories |
Original |
||||||
|
Lead screw |
Taiwan PMI/HWIN |
||||||
|
Flexible coupling |
German |
||||||
|
Heavy preloadlinerroller guide |
Taiwan |
||||||
|
Lead screw bearing |
FAG |
||||||
|
Spindle homemade loosetool cylinder |
Taiwan |
||||||
|
Y axis hydraulic balance system |
China |
||||||
