BMI5A3020
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Parameters |
Unit |
BMI5A3016 |
BMI5A3020 |
|
Table size |
mm |
1600×3200 |
2000×3200 |
|
Table loading |
t |
20 |
30 |
|
X/Y/Z travel |
mm |
3180×1600×800 |
3180×2000×1000 |
|
Guide rail |
X: 2 |
linear rail on each side in parallel, Y: 2 pairs of big size heavy duty linear roller guide. Z: 4 roller linear guide way |
|
|
Distance from spindle nose to table |
mm |
280-1080 (can be customized) |
180-1180 (can be customized) |
|
Spindle |
|
B head/standard, A, C head for option |
|
|
ATC capacity |
|
20 positions standard |
|
|
Max work piece height |
mm |
1000 (can be customized) |
|
|
Max. work piece width |
mm |
2000 |
2400 |
|
Feeding speed |
m/min |
0-15 |
|
|
Rapid moving speed |
m/min |
20 |
|
|
Positioning accuracy |
mm |
0.01 |
|
|
Repeat positioning accuracy |
mm |
0.005 |
|
|
Total weight |
t |
39 |
40 |
|
Dimensions (without electric cabinet) |
mm |
6200×4000×4300 |
6200×4400×4400 |
|
Control system |
|
3+2 axis/Siemens 828D, 5 axis simultaneous/Siemens 840Dsl GSK25i or GN 62 |
|

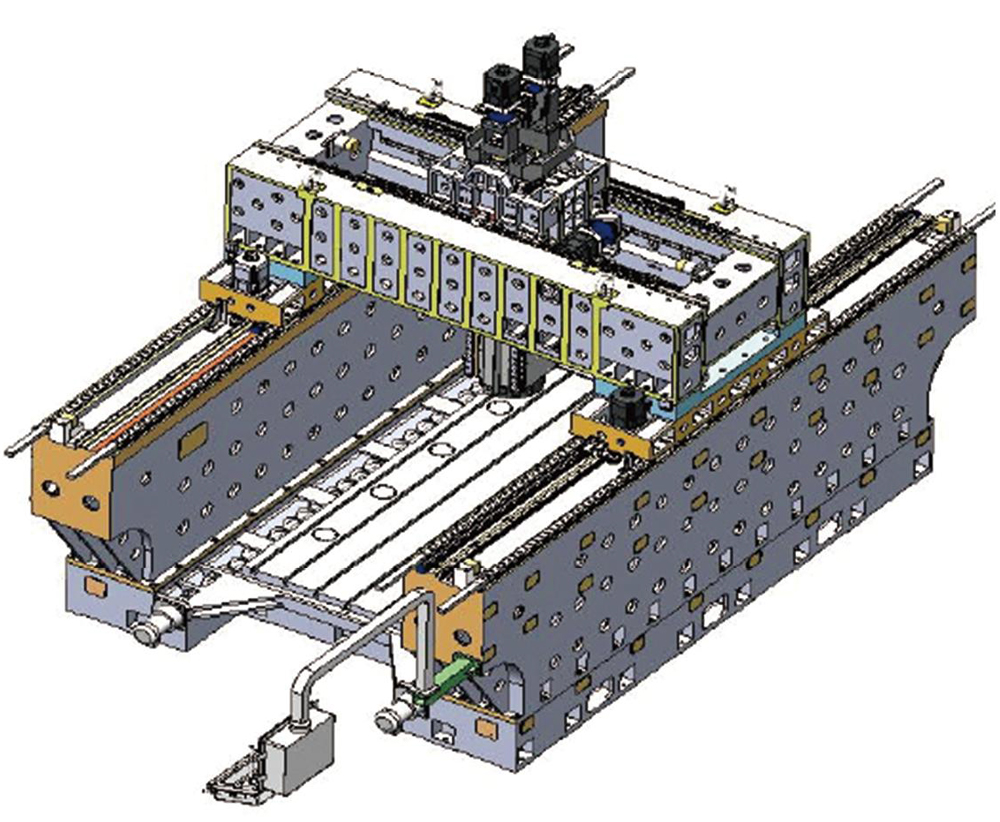

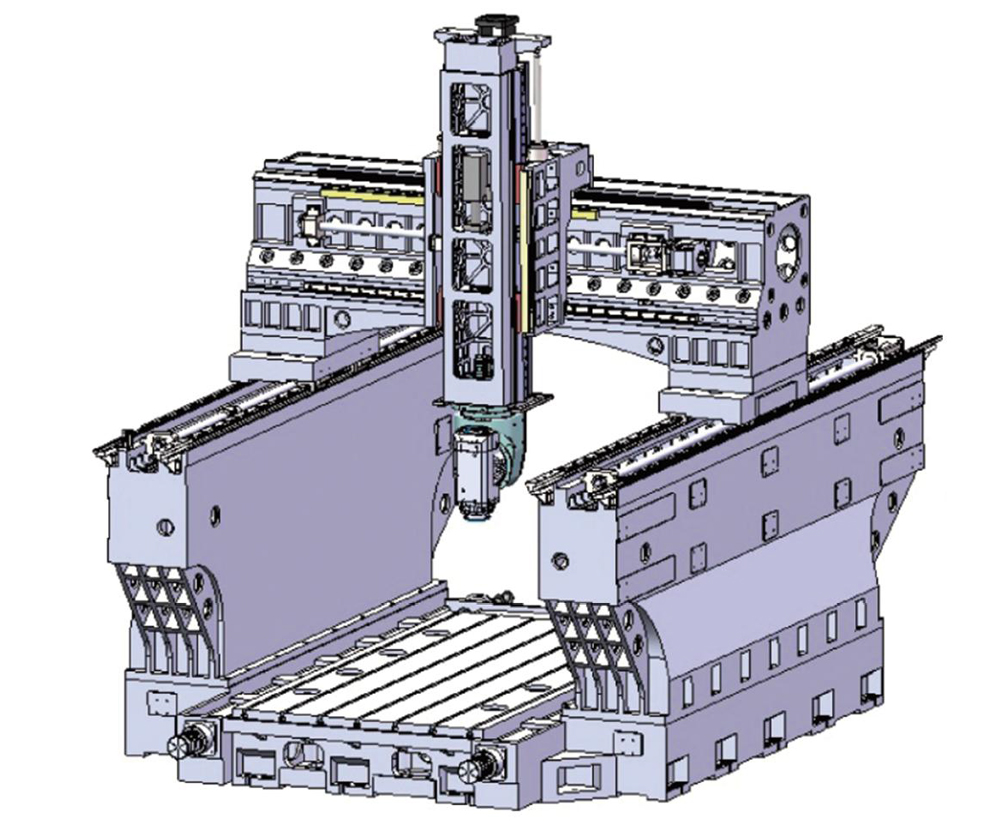

Separated structure: 25, 30, 35 and above series
|
Parameters |
Unit |
BMS5A4025 |
BMS5A6025 |
BMS5A6030 |
BMS5A8030 |
BMS5A12030 |
|
|
Table size |
mm |
2100×4000 |
2100×6000 |
2600×6000 |
2600×8000 |
2600×12000 |
|
|
Table loading |
t |
30 |
40 |
50 |
65 |
80 |
|
|
X/Y/Z travel |
mm |
4200×2500×1500 |
6200×2500×1500 |
6200×3000×1500 |
8200×3000×1500 |
12200×3000×1500 |
|
|
Guide way |
|
X: 2 linear guide way on each side, Y: 2 pairs of big size heavy duty linear roller guide, Z: 4 roller linear guideway |
|||||
|
Distance from spindle nose to table |
mm |
150-1650 (can be customized) |
|||||
|
Spindle |
|
B head/standard, C, D head for option |
|||||
|
ATC capacity |
|
20 positions/standard, 20 positions×2, 3, 4 for option |
|||||
|
Max work piece height |
mm |
1500 (can be customized) |
|||||
|
Max. work piece width |
mm |
3160 |
3600 |
||||
|
Feeding speed |
m/min |
0 - 15 |
|||||
|
Rapid speed |
m/min |
20 |
30 |
||||
|
Positioning accuracy |
mm |
0.01 |
|||||
|
Repeat positioning accuracy |
mm |
0.005 |
|||||
|
Total weight |
t |
60 |
75 |
78 |
102 |
130 |
|
|
Dimensions (without electric cabinet) |
mm |
8200×5600×4000 |
10200×5600×4000 |
10200×6100×4000 |
12200×6100×4000 |
16200×6100×4000 |
|
|
Control system |
|
3+2 axis/Siemens 828D, 5 axis simultaneous/Siemens 840Dsl/ GSK 25i/ GN 62 |
|||||
