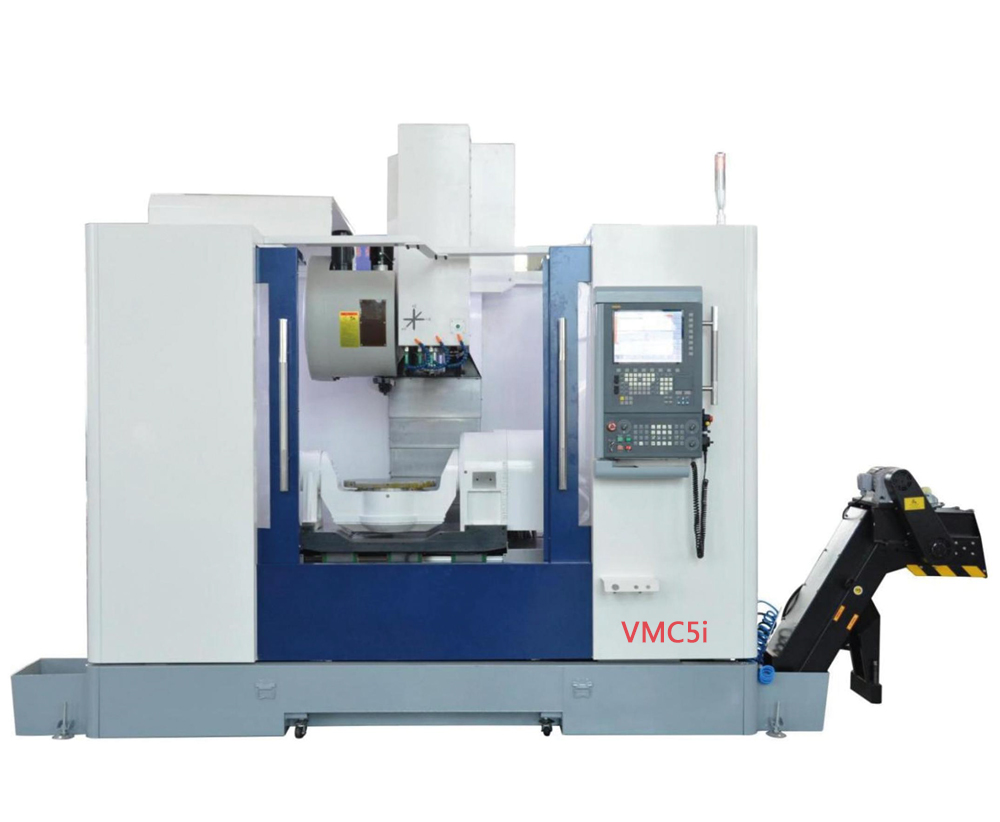

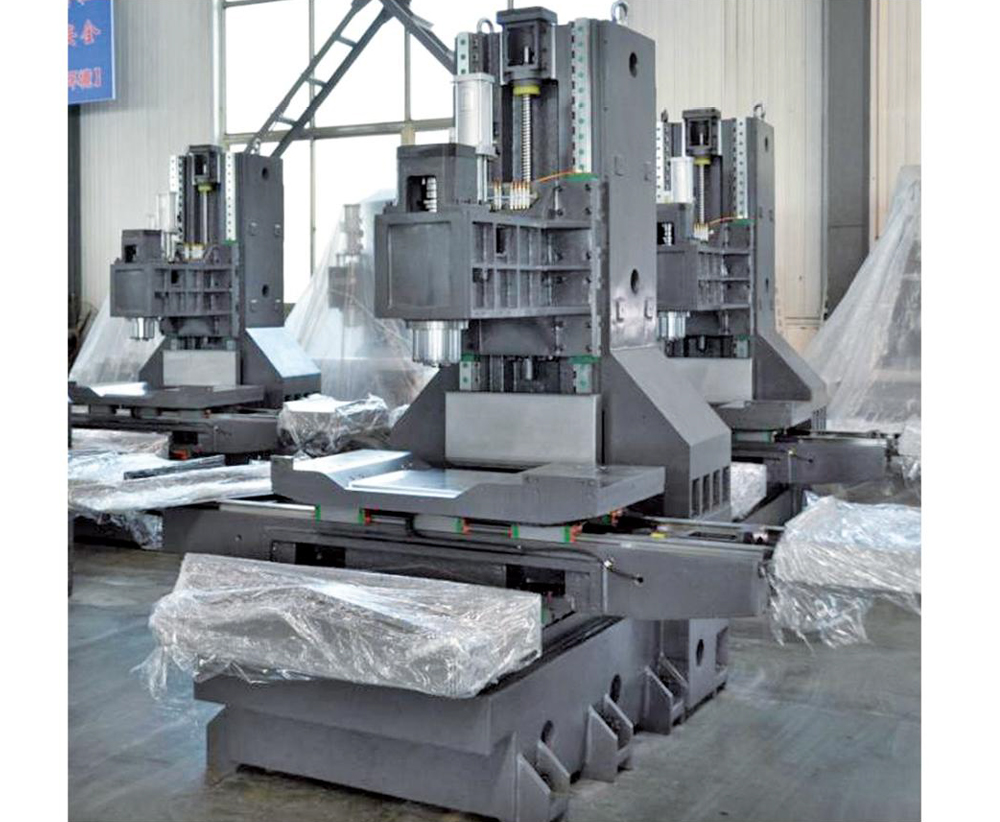

VMC 5i
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Item |
Name |
Unit |
VMC 5i |
|
Travel |
X-Axis |
mm |
500+200（Automatic tool setting） |
|
Y Axis |
mm |
600 |
|
|
Z Axis |
mm |
445 |
|
|
A Axis |
mm |
+110°/ -110° |
|
|
C Axis |
|
No limited |
|
|
Distance |
Min. Distance from Spindle nose to table surface |
mm |
130 |
|
Max. Height for 3 axis machining |
mm |
450 |
|
|
Max. Height for 5 axis machining |
mm |
300（Workpiece flipping outward）400（Workpiece flipping Inverted） |
|
|

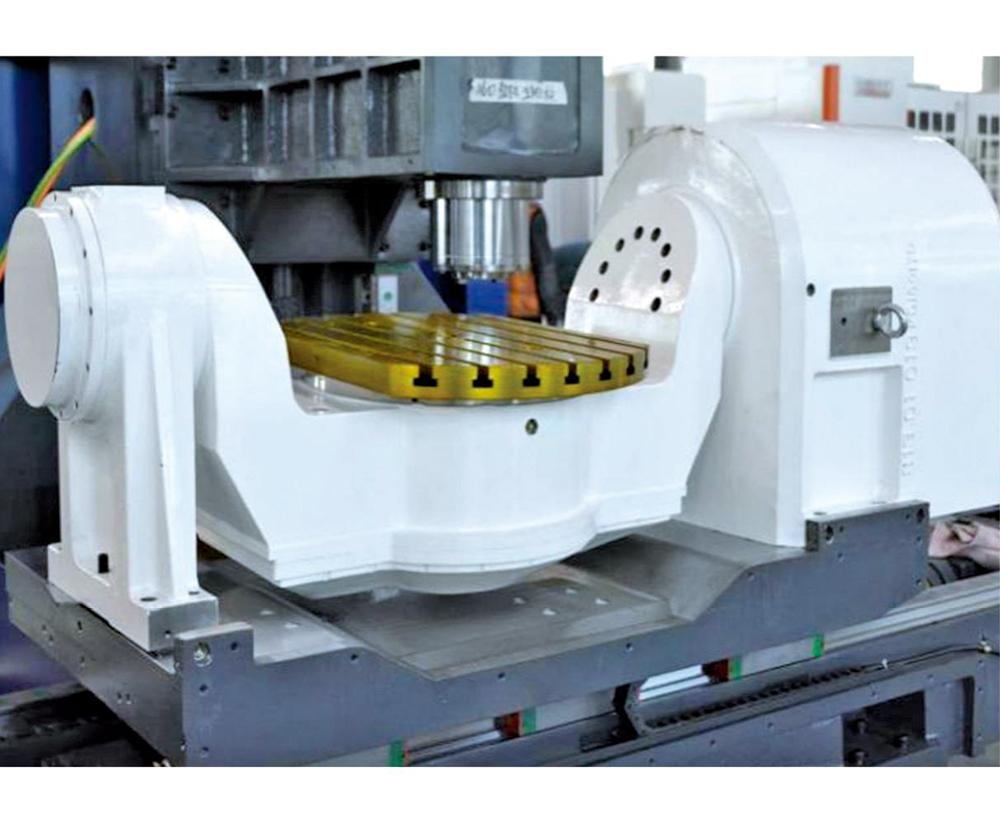

Rotary Table |
Table Size |
mm |
Ø500×370 / Ø370 |
|
A axis to table distance |
mm |
50 |
|
|
AC axis Eccentric distance |
mm |
0 |
|
|
Max. Woekpiece size |
mm |
Ø500×400 |
|
|
Max. Woekpiece weight |
kg |
300 |
|
|
Dimension of T-slot |
mm |
7/12H7 |
|
|
Center hole size |
mm |
Ø32H7 |
|
|
A axis driven |
|
Torque motor direct drive |
|
|
C axis driven |
|
Torque motor direct drive |
|
|
Feed rate |
X/Y/Z axis feed rate |
m/min |
36 |
|
X/Y/Z axis Maximum acceleration |
m/s² |
5/5/5 |
|
|
A axis turning speed |
rpm |
60 |
|
|
Continuous torque output |
Nm |
1200/2110 |
|
|
Max. A axis lock torque |
Nm |
800 |
|
|
Max. C axis turning speed |
rpm |
100 |
|
|
C axis torque output |
Nm |
224.5/415.3 |
|
|
Max. C axis lock torque |
|
800 |
|
|
positioning accuracy |
X/Y/Z axis repeat ability |
mm |
±0.003/300 |
|
X/Y/Z axis positioning accuracy |
mm |
±0.003/300 |
|
|
A/C axis repeat ability |
|
5″ |
|
|
A/C axis positioning accuracy |
|
10″ |
|
|
Spindle |
Spindle taper |
|
BT40 |
|
S1 Spindle motor |
kW |
15 |
|
|
S3 Spindle motor |
kW |
22 |
|
|
Motor speed |
rpm |
3000 |
|
|
Spindle speed |
rpm |
12000 (Opt 1500) |
|
|
Standard motor torque |
Nm |
47.8 |
|
|
Max.S3 motor torque |
Nm |
70 |
|
|
Tools |
Tool shaft |
|
BT40 |
|
Magazine capacity |
|
24 |
|
|
Tool exchange time |
S |
1.36 |
|
|
Max. tool length |
mm |
300 |
|
|
Max. tool diameter (without adjacent tools) |
mm |
Ø78 |
|
|
Max. tool weight |
kg |
8 |
|
|
controller |
Standard |
|
China GONA GNC61(HMI 15”) |
|
Operation |
|
SIEMENS 840D |
|
|
|
|
|
|
|
Machine |
Min/Max. air pressure |
kg/cm2 |
5.5 ~ 6.5 |
|
Power requirement |
kW |
36 |
|
|
Power requirement |
KVA |
50 |
|
|
Machine weight |
kg |
8000 |
|
|
Machine size |
mm |
3200×3230×2950 |
