MU-800
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
|
Items |
Unit |
MU-600 |
MU-800 |
MU-800evo |
MU-800avi |
|
System (Control unit) |
mm |
GSK 25i OR GN 62 |
GSK 25i OR GN 62 |
GSK 25i OR GN 62 |
GSK 25i OR GN 62 |
|
X/Y/Z-axis travel |
Degree |
600/910/450 |
850/950/550 |
850/950/550 |
850/950/550 |
|

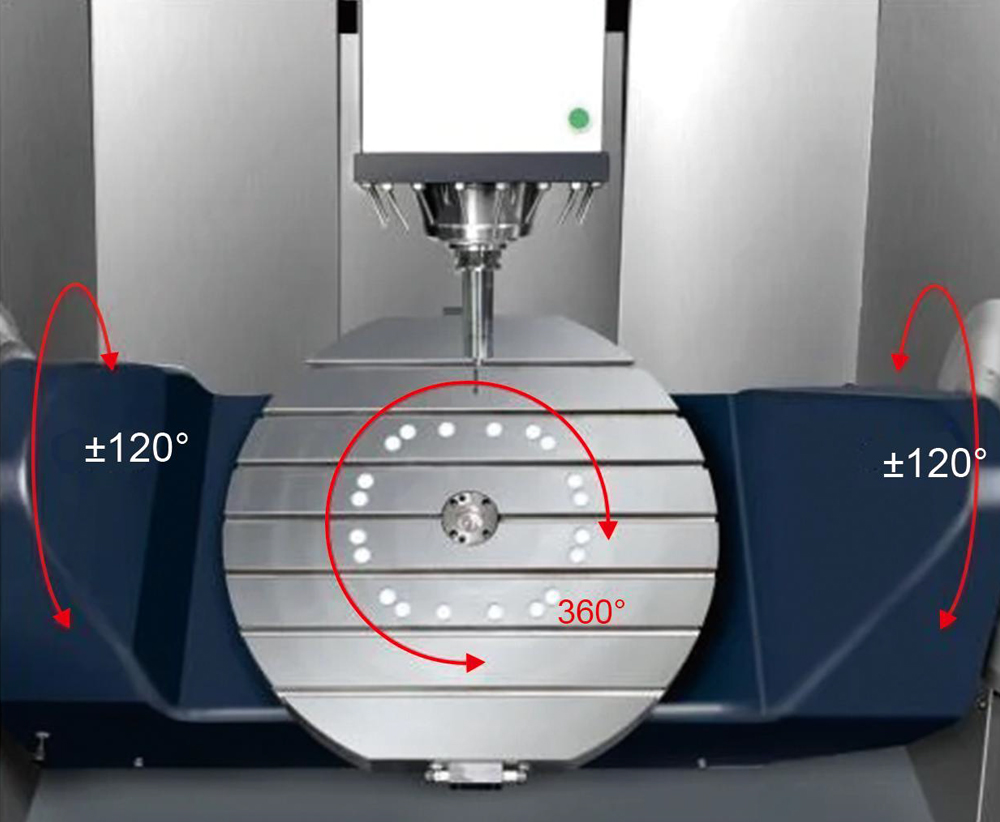

A/C-axis travel |
mm |
±120/360 |
±120/360 |
±120/360 |
±140/360 |
|
Distance from spindle end face to worktable |
mm |
120-570 |
180-730 |
180-730 |
180-730 |
|
Worktable size |
kg |
Φ500 |
Φ800 |
Φ800 |
Φ800 |
|
Max. load |
|
600 |
600 |
800 |
800 |
|
Spindle(standard) |
|
|
|
|
|
|
Max. spindle speed/taper |
rpm |
16000HSK-A63 |
18000HSK-A63 |
20000HSK-A63 |
12000BT40/HSK-A63 |
|
Spindle power（S1/S6-40%） |
KW |
25/27 |
20/28 |
29/36 |
15.5/21.7 |
|
Torque（S1/S6-40%） |
N.m |
51/61 |
58/81.2 |
69.9/87.5 |
85/119 |
|
Feed system |
|
|
|
|
|
|
X/Y/Z-axis rapid traverse |
m/min |
40/40/40 |
40/40/40 |
20/20/20 |
20/20/20 |
|
Max. cutting feed rate |
m/min |
20 |
20 |
10 |
10 |
|
A/C-axis rapid traverse speed |
m/min |
20/80 |
20/30 |
20/30 |
20/30 |
|
Positioning precision/ Repeatability(GB17421.22000) |
|||||
|
X/Y |
mm |
0.006/0.004 |
0.008/0.006 |
0.007/0.005 |
0.007/0.005 |
|
Z |
mm |
0.005/0.003 |
0.007/0.005 |
0.006/0.004 |
0.006/0.004 |
|
A/C |
ARCSEC |
5/4 |
12/6 |
8/5 |
8/5 |
|
Automatic tool change system |
|||||
|
Number of tools |
Pcs |
26T |
26T |
26T |
26T |
|
Tool change time (tool-tool) |
sec |
5s |
12s |
12s |
12s |
|
Max. tool length |
mm |
300 |
300 |
300 |
300 |
|
Max. tool diameter (none adjacent) |
mm |
Φ80/Φ120 |
Φ80/Φ120 |
Φ80/Φ120 |
Φ80/Φ120 |
|
Max. tool weight |
kg |
8 |
8 |
8 |
8 |
|
Machine size |
|
|
|
|
|
|
Height |
mm |
3100 |
3443 |
3443 |
3443 |
|
Area (L*W) |
m㎡ |
4900x3750 |
6452x3855 |
6452x3855 |
6452x3855 |
|
Net weight |
kg |
13000 |
17000 |
17000 |
17000 |
|
Power |
kw |
35 |
60 |
70 |
60 |
