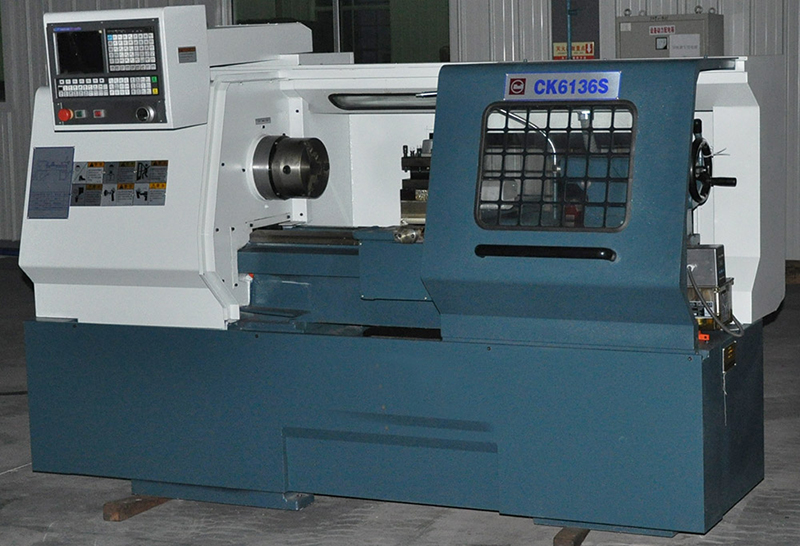

CK6136S
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
| Model | SPECIFICATION | Unit | CK6136S |
| Processing range | Max.Swing over bed | mm | Φ360 |
| Max.Swing over cross slide | mm | Turret and gantry Φ140 | |
| Gantry Φ90 | |||
| Turret Φ180 | |||
| Max cutting length | mm | 750 | |
| Spindle | Spindle bore | mm | Φ40 |
| spindle nose | C5 | ||
| Main motor power | Kw | 5.5 | |
| Range of spindle speed | r/min | 200-3000 | |
| spindle taper | MT5 | ||
| Travel | X Max travel | mm | 250 |
| Z Max travel | mm | 750 | |
| Feed | X-axis travel | m/min | 8 |
| Z-axis travel | m/min | 10 | |
| X/Z Feed motor | Nm | X/Z：5/7 | |
| Tool post | Standard | 4 station turret | |
| Standard cutter diameter size | 20×20 | ||
| Feed | X-axis travel | mm | φ60 |
| Z-axis travel | mm | 100 | |
| X/Z Feed motor | MT4 | ||
| Positioning accueacy | X repeatability Positioning accueacy | mm | 0.0075 |
| Z repeatability Positioning accueacy | mm | 0.01 | |
| Overall dimension（L×W×H） | mm | 2160×1165×1465 | |
| weight | T | 2100kg | |
| main motor power | 3￠-AC 380V 50Hz±5% |
