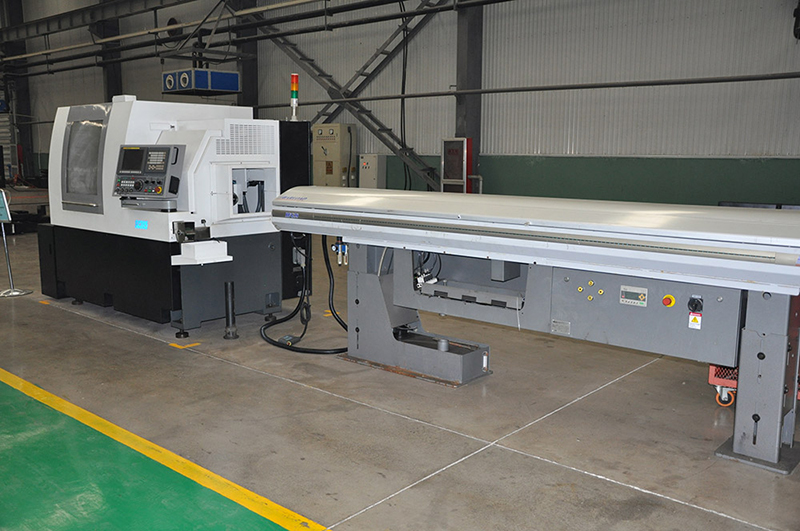

HCL350
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
| Model | SPECIFICATION | Unit | HCL350 |
| Processing range | Max.Swing over bed | mm | Φ350 |
| Max.Swing over cross slide | mm | Φ80（排刀）/Φ170（刀架） | |
| Max cutting length | mm | 350 （弹簧夹头） | |
| 240（手动卡盘) | |||
| Spindle | Spindle bore | mm | Φ49 |
| spindle nose | A2-5 | ||
| Main motor power | Kw | 4 | |
| Range of spindle speed | r/min | 200-3000 | |
| table travel | X Max travel | mm | 310 |
| Z Max travel | mm | 350mm（Er chuck） | |
| 240mm（Manual chuck） | |||
| Feed | X-axis travel | m/min | 12 |
| Z-axis travel | m/min | 18 | |
| X/Z Feed motor | Nm | 6 | |
| 刀架 | 全排刀 | 全排刀 | |
| Positioning accueacy | X repeatability Positioning accueacy | mm | 0.005 |
| Z repeatability Positioning accueacy | mm | 0.006 | |
| Overall dimension（L×W×H） | mm | 2000x1500x1800 | |
| weight | kg | 1600 | |
| main motor power | 3￠-AC 380V 50Hz±5% |
