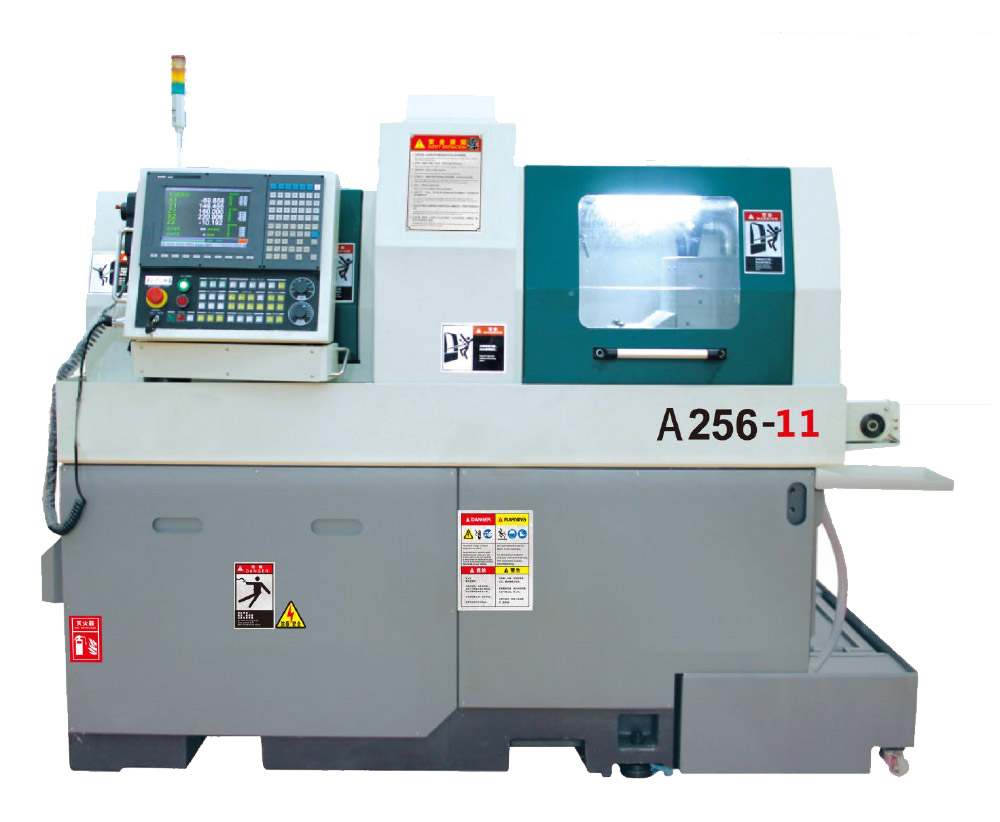

A256-11
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

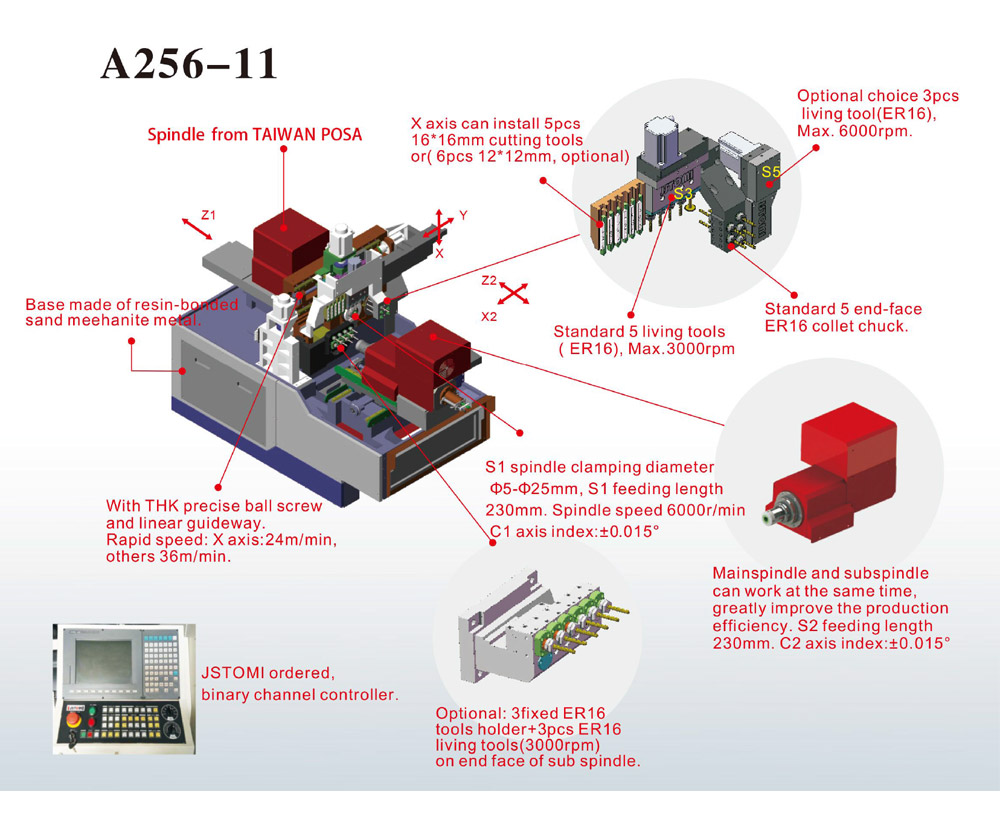

OUR STRENGTH 1.High-power,fast rapid speed, heavy cutting, multi-function. 2.XYZ axis large inertia servo motor 1300W,850W. 3.Ball screw double nut. 4.Linear guideway wide ≥25mm. 5.Ball screw 12mm pitch. 6.Carriage,living tool and spindle rapid speed ≥30m/min. 7.Ball screw fixed by double bearing holder. 8.Standard S3 living tool (S4,S5 optional), multi-function. 9.Max machining length:230mm. 10.Net weight: 4 ton.
| OUR STRENGTH | INTERNATIONAL BRAND | |
| 1.Simple,low power, light cutting. | ||
| 1.High-power,fast rapid speed, heavy cutting, multi-function. | 2.XYZ axis small inertia servo | |
| 2.XYZ axis large inertia servo motor 1300W,850W. | motor 1000W,750W. | |
| 3.Ball screw double nut. | 3.Ball screw single nut. | |
| 4.Linear guideway wide ≥25mm. | 4.Linear guideway wide ≤20mm. | |
| 5.Ball screw 12mm pitch. | 5.Ball screw 5-6mm pitch. | |
| 6.Carriage,living tool and | 6.Carriage,living tool and spindle | |
| spindle rapid speed ≥30m/min. | rapid speed ≤18m/min. | |
| 7.Ball screw fixed by double bearing holder. | 7.Ball screw fixed by single bearing holder, | |
| 8.Standard S3 living tool (S4,S5 optional), | other side fixed by customer themselves. | |
| multi-function. | 8.Only have S3 living tool. | |
| 9.Max machining length:230mm. | 9.Machining length ≤90mm. | |
| 10.Net weight: 4 ton. | 10.Net weight: 2 ton | |
| PARAMETER | ||
| Model | Unit | A256-11 |
| Optional system | JSTOMI ordered controller | |
| Rapid speed | m/min | X-axis 24 Others 36 |
| S1 spindle clamping diameter | mm | φ7-φ35 |
| S2 spindle clamping diameter | mm | φ5-φ35 |
| S1/S2one time feeding material length | mm | With sleeve 230, Without sleeve 280 |
| S1 spindle max drilling diameter | mm | φ20 |
| S1 spindle max tapping diameter | M12 | |
| Max lateral drilling hole diameter r | mm | φ10 |
| S1/S2 spindle power | kw | 4.4 |
| S1 max speed | rpm | 6000 |
| S2 max speed | rpm | 6000 |
| C1/ C2 indexing | ±0.015 | |
| Movable sleeve travel | mm | 230 |
| Without sleeve (optional) | S1 without sleeve 280 | |
| Cutting tools | mm | 5x16x16 |

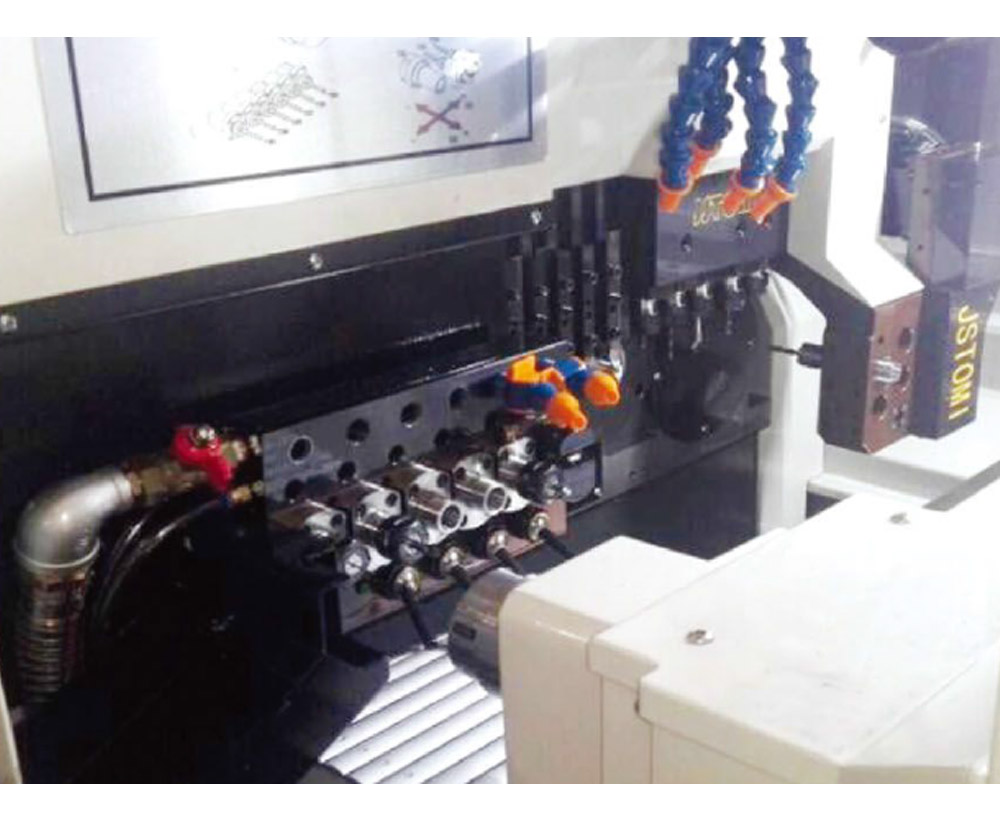

| S3 lateral power tools | w | 5xpower tool ER16 |
| S3 lateral power tools Max speed | rpm | 3000 |
| S3 motor power | w | 1000 |
| S4 lateral power tools | w | 4* fixed tool ER20 + 4* power tool ER20 |
| S4 lateral power tools Max speed | rpm | 6000 |
| S4 motor power | w | 1000 |
| S5 lateral power tools | 5* fixed tool ER16 + 3* power tool ER16 | |
| S5 max drilling diameter | mm | φ10 |
| S5 Max. tapping diameter | M8xP1.25 | |
| S5 lateral tools Max speed | rpm | 6000 |
| S5 motor powerY1/Z1 | w | 750 |
| servo motor powerX1 | w | 850 |
| servo motor power | w | 1300 |
| X2/Z2/Y2 servo motor power | w | 850 |
| Dimension Size( L x W x H ) | mm | 2700x1450x1800 |
| N.W | kg | 3800 |
