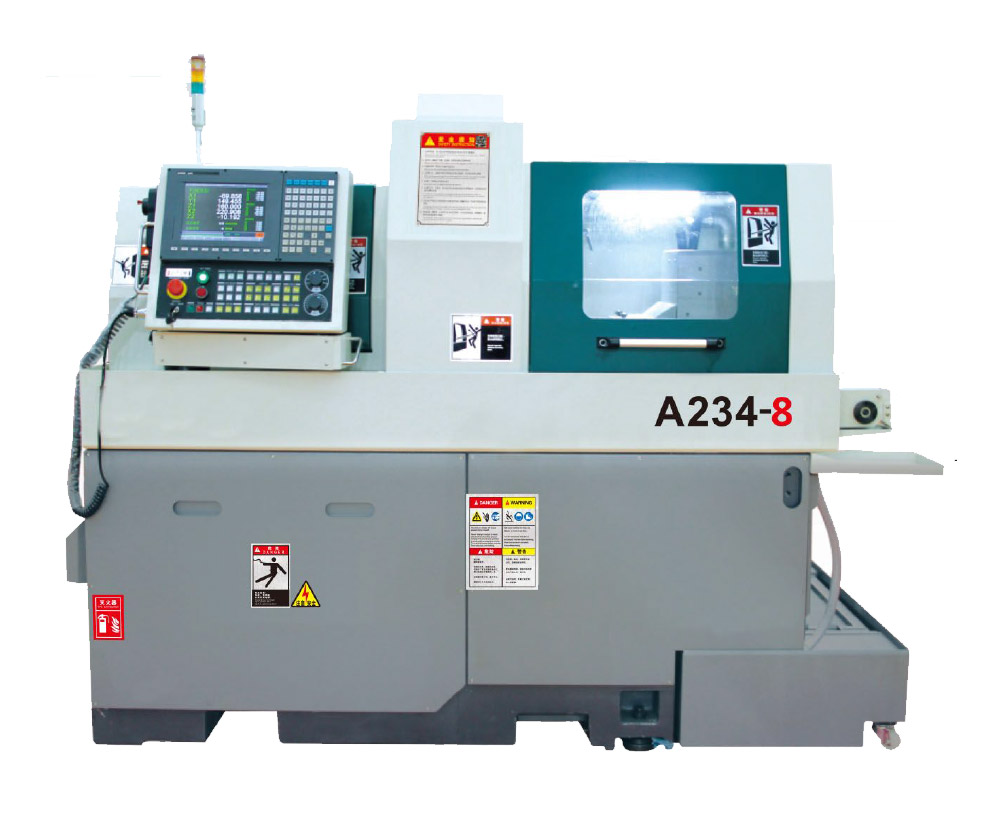

A234-8
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
OUR STRENGTH 1.High-power,fast rapid speed, heavy cutting, multi-function. 2.XYZ axis large inertia servo motor 1300W,850W. 3.Ball screw double nut. 4.Linear guideway wide ≥25mm. 5.Ball screw 12mm pitch. 6.Carriage,living tool and spindle rapid speed ≥30m/min. 7.Ball screw fixed by double bearing holder. 8.Standard S3 living tool (S4,S5 optional), multi-function. 9.Max machining length:230mm. 10.Net weight: 4 ton.
| OUR STRENGTH | INTERNATIONAL BRAND | ||
| 1.Simple,low power, light cutting. | |||
| 1.High-power,fast rapid speed, heavy cutting, multi-function. | 2.XYZ axis small inertia servo | ||
| 2.XYZ axis large inertia servo motor 1300W,850W. | motor 1000W,750W. | ||
| 3.Ball screw double nut. | 3.Ball screw single nut. | ||
| 4.Linear guideway wide ≥25mm. | 4.Linear guideway wide ≤20mm. | ||
| 5.Ball screw 12mm pitch. | 5.Ball screw 5-6mm pitch. | ||
| 6.Carriage,living tool and | 6.Carriage,living tool and spindle | ||
| spindle rapid speed ≥30m/min. | rapid speed ≤18m/min. | ||
| 7.Ball screw fixed by double bearing holder. | 7.Ball screw fixed by single bearing holder, | ||
| 8.Standard S3 living tool (S4,S5 optional), | other side fixed by customer themselves. | ||
| multi-function. | 8.Only have S3 living tool. | ||
| 9.Max machining length:230mm. | 9.Machining length ≤90mm. | ||
| 10.Net weight: 4 ton. | 10.Net weight: 2 ton | ||
| PARAMETER | |||

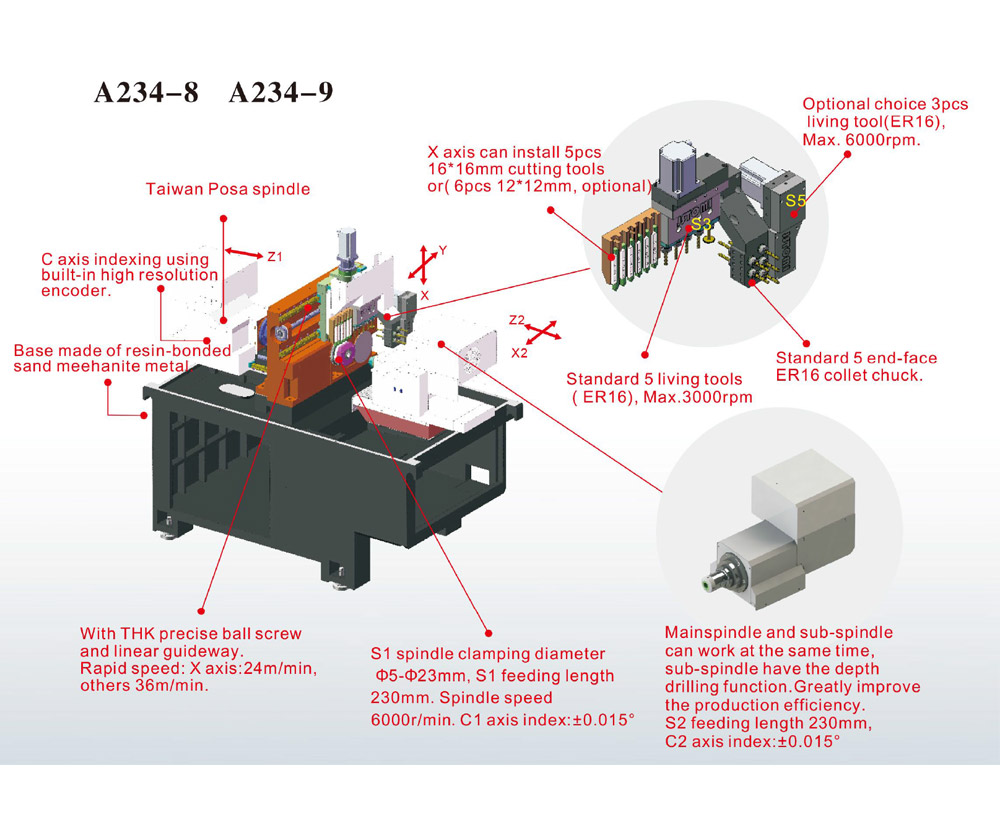

| Model | Unit | A234-8 | A234-9 |
| Optional system | JSTOMI ordered controller | JSTOMI ordered controller | |
| Rapid speed | m/min | X-axis 24 Others 36 | X-axis 24 Others 36 |
| S1 spindle clamping diameter | mm | φ5-φ23 | φ5-φ23 |
| S2 spindle clamping diameter | mm | 23 | 23 |
| S2 spindle max drilling diameter | mm | 10 | 10 |
| S1/S2 one time feeding material length | mm | 230 | 230 |
| S1 spindle max drilling diameter | mm | φ10 | φ10 |
| S1 spindle max tapping diameter | M8xP1.25 | M8xP1.25 | |
| S2 spindle max tapping diameter | M8xP1.25 | M8xP1.25 | |
| S1 spindle max drilling depth | mm | 60 | 60 |
| S1 spindle power | kw | 3.0 | 3.0/4.0 |
| S1 max speed | rpm | 6000 | 6000 |
| S2 spindle power | kw | 4.4 | 4.4 |
| S2 max speed | rpm | 6000 | 6000 |
| C1/ C2 indexing | ±0.015 | ±0.015 | |
| Spindle through hole | mm | φ25 | φ25 |
| Fixed sleeve travel | mm | 230 | 230 |
| Movable sleeve travel | mm | 230 | 230 |

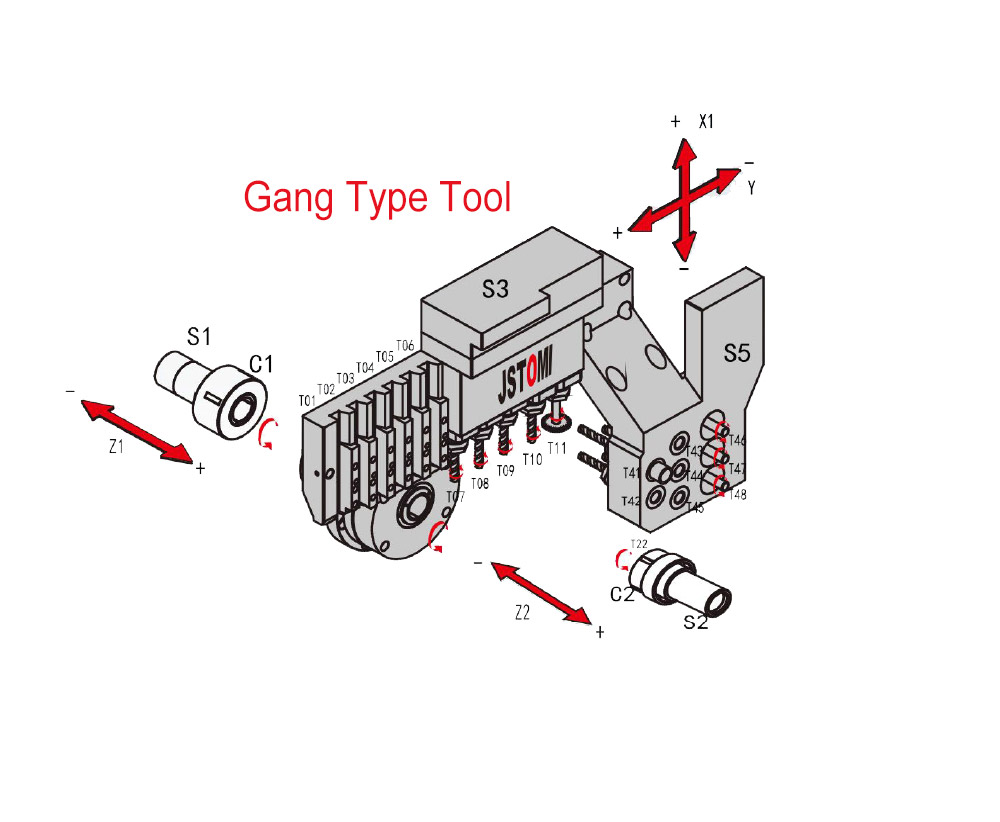

| Cutting tools(optional) | 5x16x16 or 6x12x12 | 5x16x16 or 6x12x12 | |
| S3 lateral power tools | 5xpower tool ER16 | 5xpower tool ER16 | |
| S3 lateral power tools Max speed | rpm | 3000 | 3000 |
| S3 motor power | kw | 1 | 1 |
| S5 end face power tools | 5* fixed tool ER16 | Standard 5* fixed tool ER16 | |
| Optional 3* power tool ER16 | |||
| S5 max drilling diameter | mm | 10 | 10 |
| S5 Max. tapping diameter | M8xP1.25 | M8xP1.25 | |
| S5 end face tools Max speed | 6000 | ||
| S5 motor power | 0.8 | ||
| Y1/Z1/Z2 servo motor power | kw | 0.85 | 0.85 |
| X1 servo motor power | kw | 1.3 | 1.3 |
| Dimension Size( L x W x H ) | mm | 1900x1300x1740 | 1900x1300x1740 |
| N.W | kg | 2300 | 2300 |
