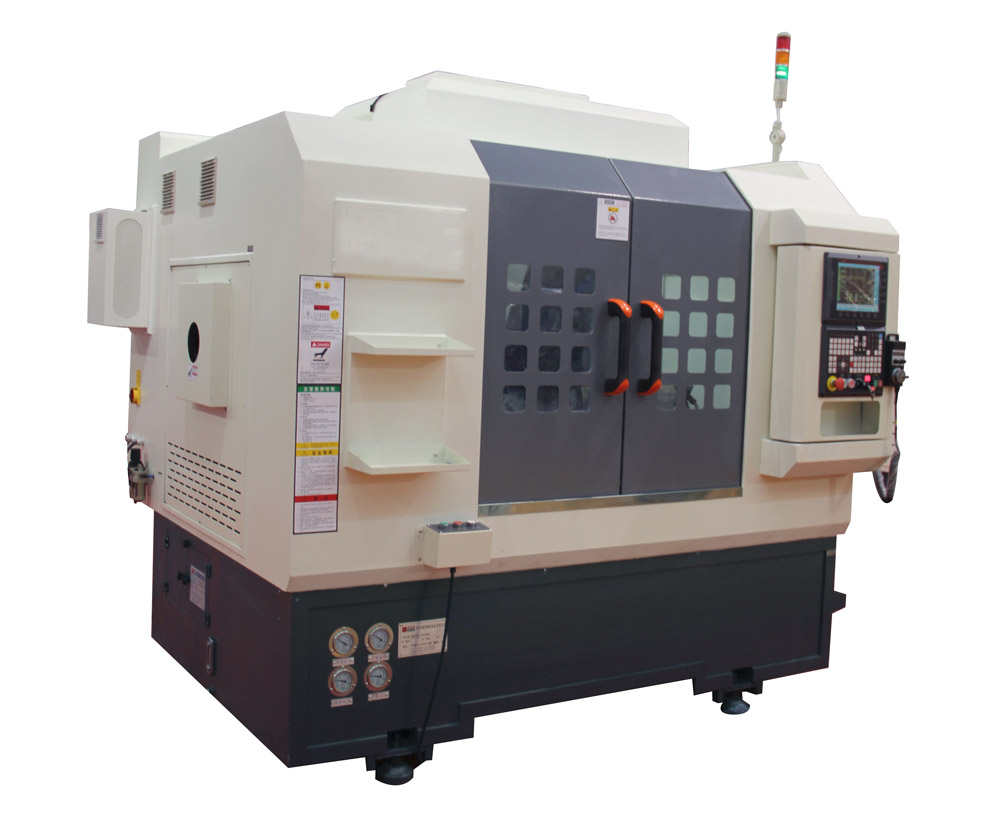

B46X
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool

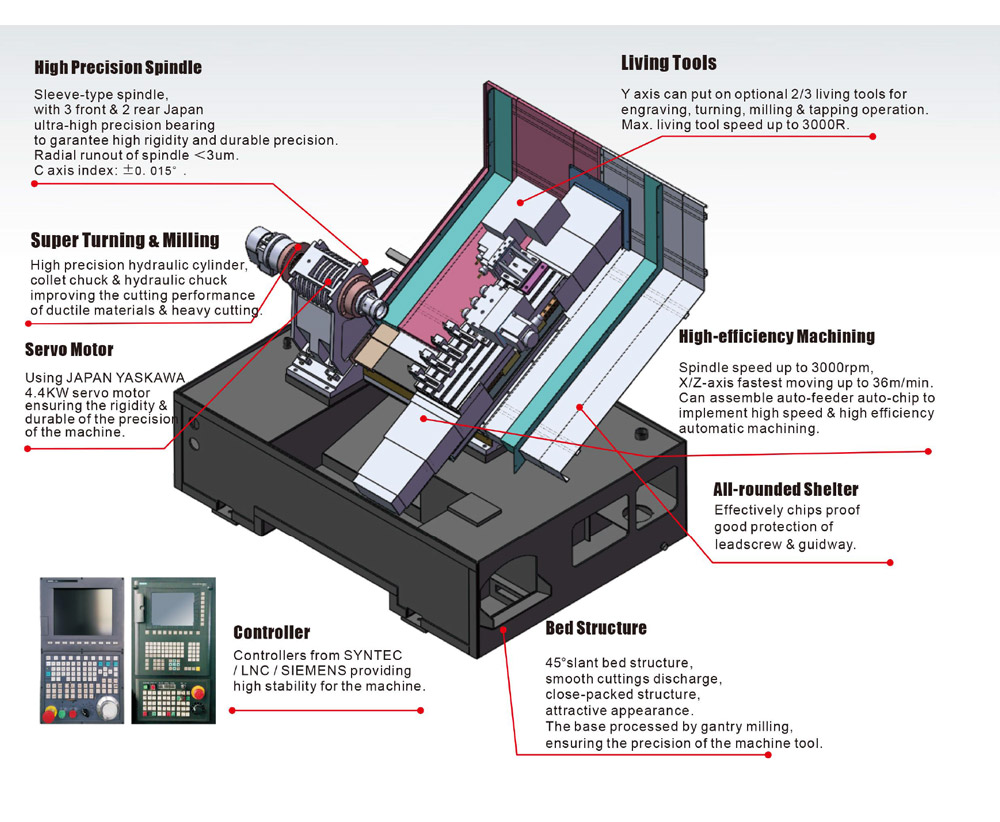

Key Features:
1.Reduce the technical process of product, improve the efficiency. Turning and milling combine machining can complete almost all procedure in one clamping, In this way, on the one hand can save the prepare time of production, on the other hand, save the time of fixture produce. 2.Less clamping time can prevent the cumulative error generated by frequency clamping. By using on-line monitoring function, this machine can inspect the key data and control the accuracy online. 3.Less floor space, lower cost. This machine can made the parts in only one clamping, customer don't need extra cost for other machine, chuck, space equipment maintenance and management
Model | Unit | B46X | |
Spindle bore | mm | φ56 | |
Through max. material diameter | mm | φ45 | |
Max. machining diameter | mm | φ450 | |
Max. length of machining | mm | 200 | |
Max. travel of X-axis | mm | 1100 | |
Max. travel of Z-axis | mm | 390 | |
X/Z-axis fast moving | mm | 30/30 | |
Reposition accuracy | mm | 0.005 | |
Spindle servo motor | kw | 4.4 | |
Spindle speed | r/min | 3000 | |
X-axis servo motor | w | 1300 | |
Z-axis servo motor | w | 1300 | |
Lateral Er25 living tool servo motor | w | 850 | |
Endfacel Er25 living tool servo motor | w | 1300 | |
Gang type tools | pc | 1-5 | |
Live tool | pc | 5 | |
Total installed capacity | kw | 11 | |
Size | mm | 3400 | |
N.W | kg | 2205x2205x2205 | |
Controller | LNC / SYNTEC / SIEMENS | 5 Series / 6 Series/8 Series | |
Spindle | TAIWAN POSA/ TAIWAN ROYAL | A2-5 / 46 Spindle | |
Servo Motor | X-axis | JAPAN YASKAWA | |
Z-axis | JAPAN YASKAWA | ||
Spindle Servo Motor | JAPAN YASKAWA | ||
Servo Driver | JAPAN YASKAWA | ||
Leadscrew & Guidway | TAIWAN HIWIN | Level | |
Bearing | JAPAN NSK / GERMANY FAG | Level | |
Leadscrew Coupler | GERMANY | Precision | |
Living tools motor | JAPAN YASKAWA SERVO MOTOR |
