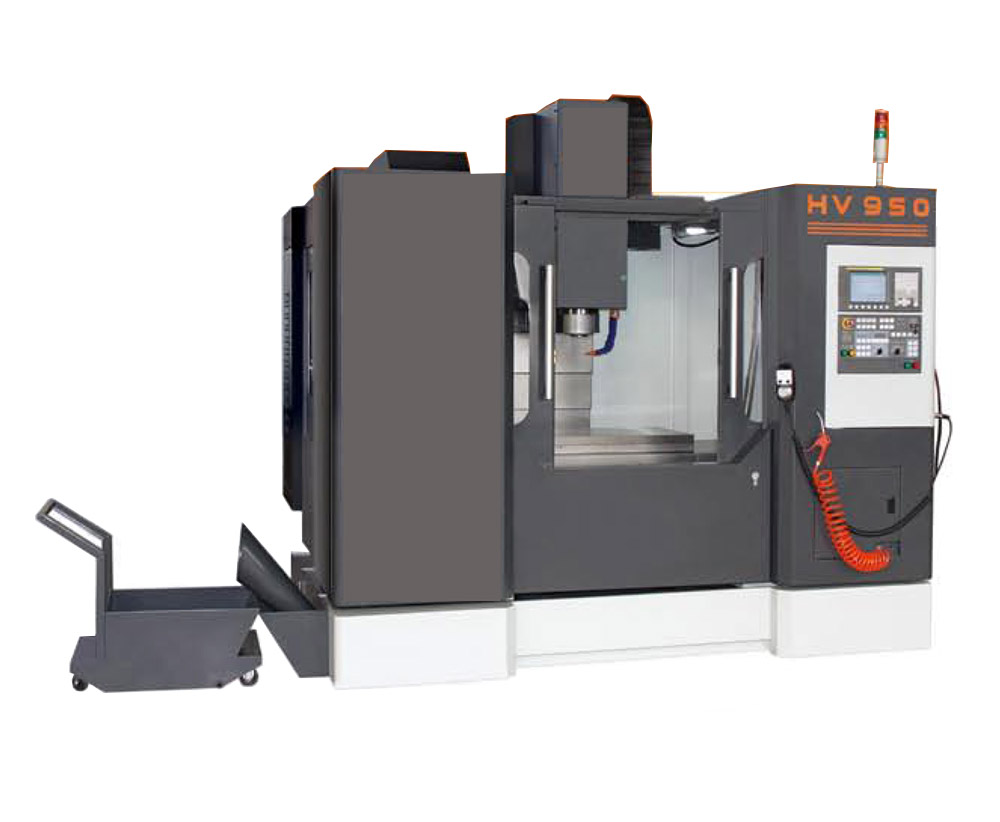

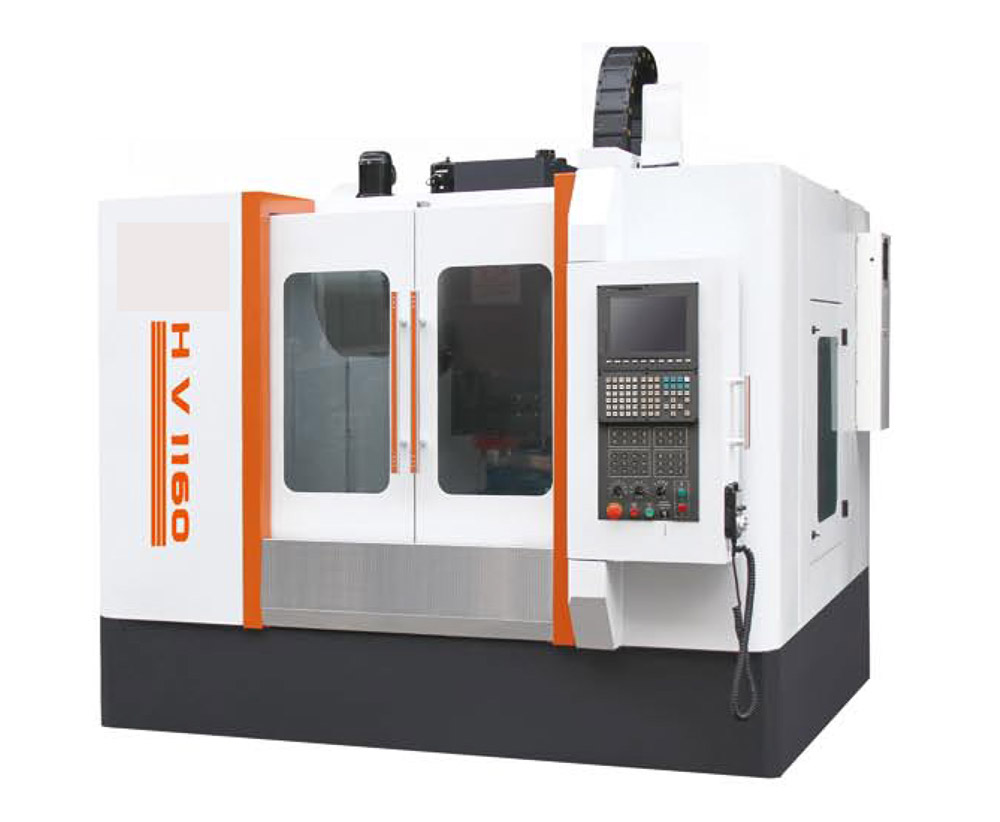

HV-950 / HV-1160
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
| SPECIFICATIONS | HV-950 | HV-1160 |
| X-Axis Travel | 900 | 1100 |
| Y-Axis Travel | 500 | 600 |
| Z-Axis Travel | 550 | 700 |
| Spindle Nose To Table | 120-670 | 120-820 |
| Spindle Axis To Column | 555 | 655 |
| X Axis rapid feed speed | 20 | 20 |
| Y Axis rapid feed speed | 20 | 20 |
| Z Axis rapid feed speed | 20 | 20 |
| Cutting feed | 1/10 | 1/10 |
| Table size | 1000×520 | 1300×600 |
| Max weight on table | 500 | 800 |
| working from the ground surace height | 950 | 950 |
| T-slot | 5×18×100 | 5×18×100 |
| Speed | 8000 | 8000 |
| Spindle taper | BT40-150 | BT40 |
| positioning accuracy | 0.005/300 | 0.005/300 |
| Repeat positioning accuracy | 0.003 | 0.003 |
| Spindle motor | βiI12/8000 | βiI12/8000 |
| X/Y axis servo motor | βis22/2000 | βis22/2000 |
| Z axis servo motor | βis22B/2000 | βis22B/2000 |
| Capacity of tools | DIC 24 | DIC 24P |
| Change times | 2sec at 50 | 2sec at 50 |
| Machine weight | 6000 | 7500 |
| Machine overall dimension(L×W×H) | 3250×2600×2600 | 約3800×2600×2900 |
