TM400Y
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

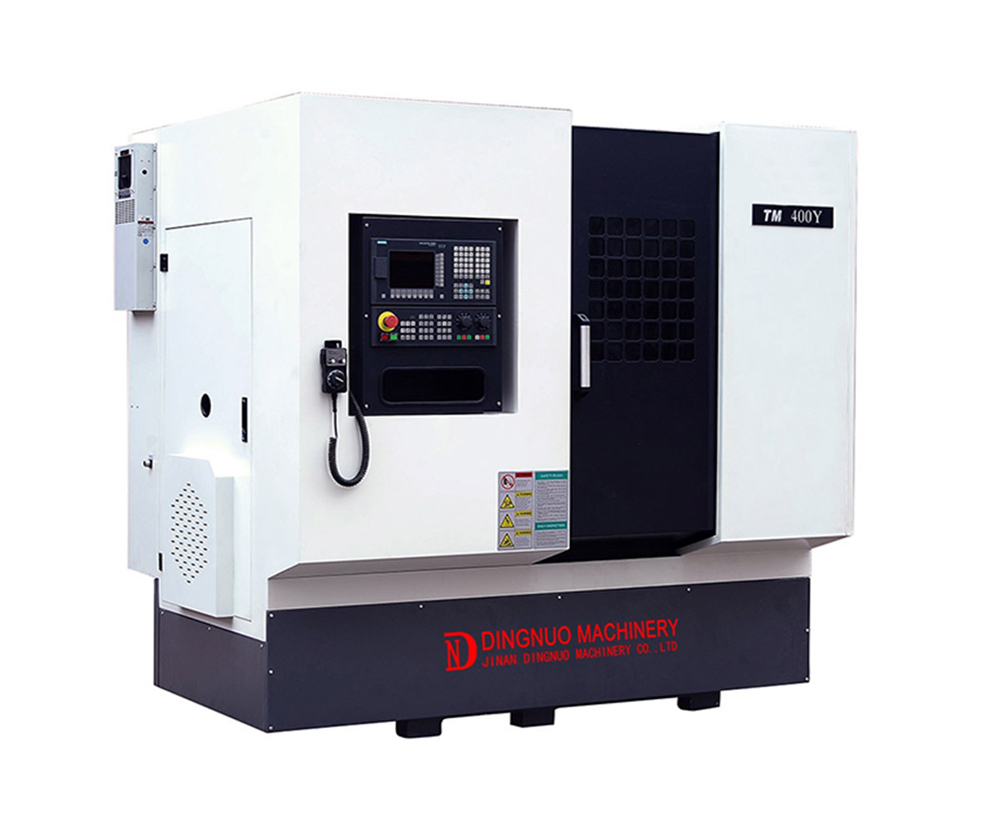

TM400Y is high precision and efficient CNC lathe with linear guideway and center mounted ballscrew. It allows high flexibility in tooling configurations, a wide range of gang type, turret and 4-position tool post, live tooling and polygon tools can be combined to fit your specific need. And combining with C-axis function on spindle and Y axis, the face milling function can also drill eccentric holes or taps, saving work piece's second set-up time. FLASH FL400 is the perfect machine tool for your production.
| Configuration/Type | UNIT | ||
| Structure | Bed inclince degree | 0° | |
| Guideway type | Linear motion | ||
| Capacity | Chuck/Collet | N/A | Pneumatic collet/Hydraulic collet |
| Max.swing dia.over bed | mm | ø400 | |
| Max.length of workpiece | mm | 200 | |
| Max.swing dia.over slide | mm | ø120 | |
| Spindle | Spindle type | N/A | A2-5 ﹡A2-6 |
| Spindle bore | mm | ø48 ﹡ø62 | |
| Max.dia.of through hole | mm | ø40 ﹡ø52 | |
| Spindle speed | rpm | 3000,﹡5000 2000﹡3500 | |
| Main motor power | KW | 3.7/5.5, ﹡5.5/7.5 | |
| Axis | X axis travel | mm | 400 |
| Z axis travel | mm | 250 | |
| Y axis travel | mm | 90 | |
| X/Y/Z rapid traverse | m/min | 7/10/10 | |

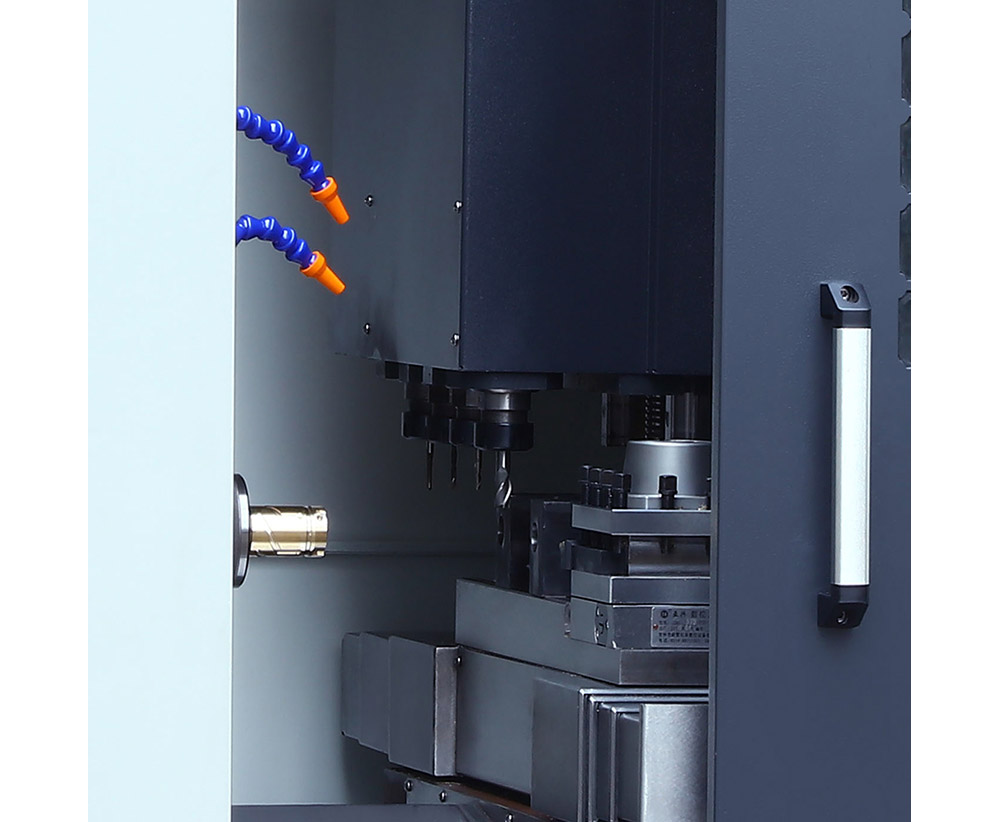

| Toolpost | Toolpost type | N/A | Gang type tools mixed with livetooling |
| Tailstock | Taper of tailstock | N/A | No |
| Travel of tailstock quill | N/A | No | |
| Others | Power capacity | KVA | 14 |
| Overall dimension(LXWXH) | mm | 2020X1450X1850 | |
| Weight(about) | Kg | 2500 | |
