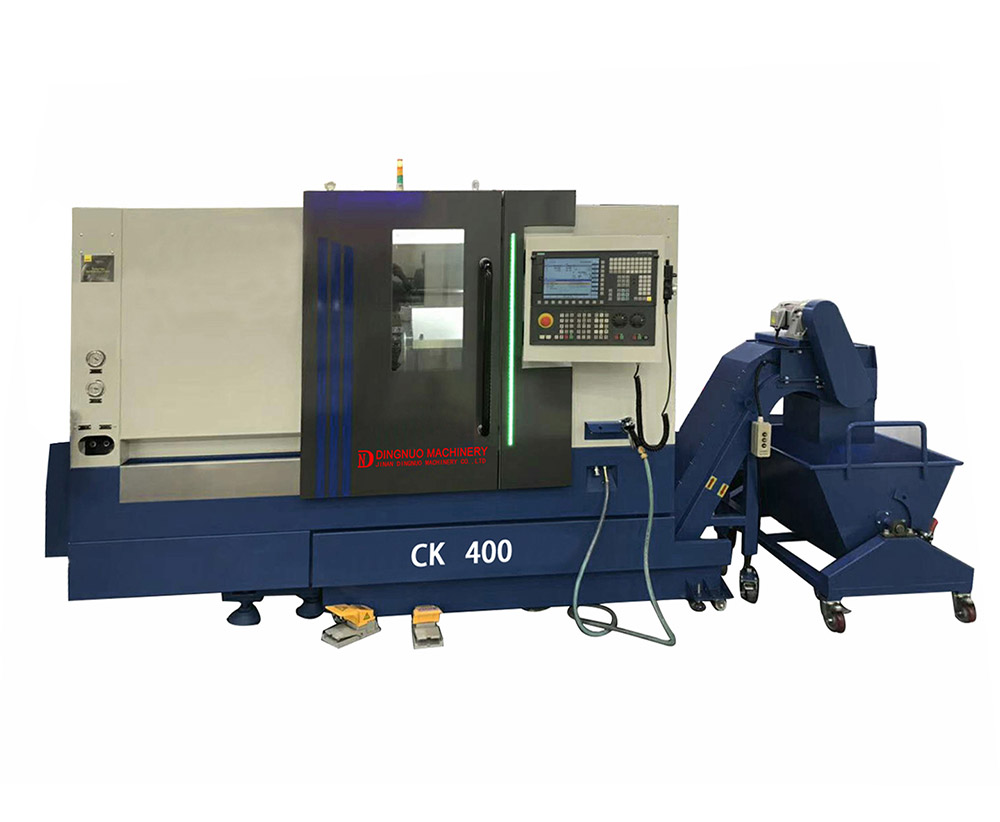

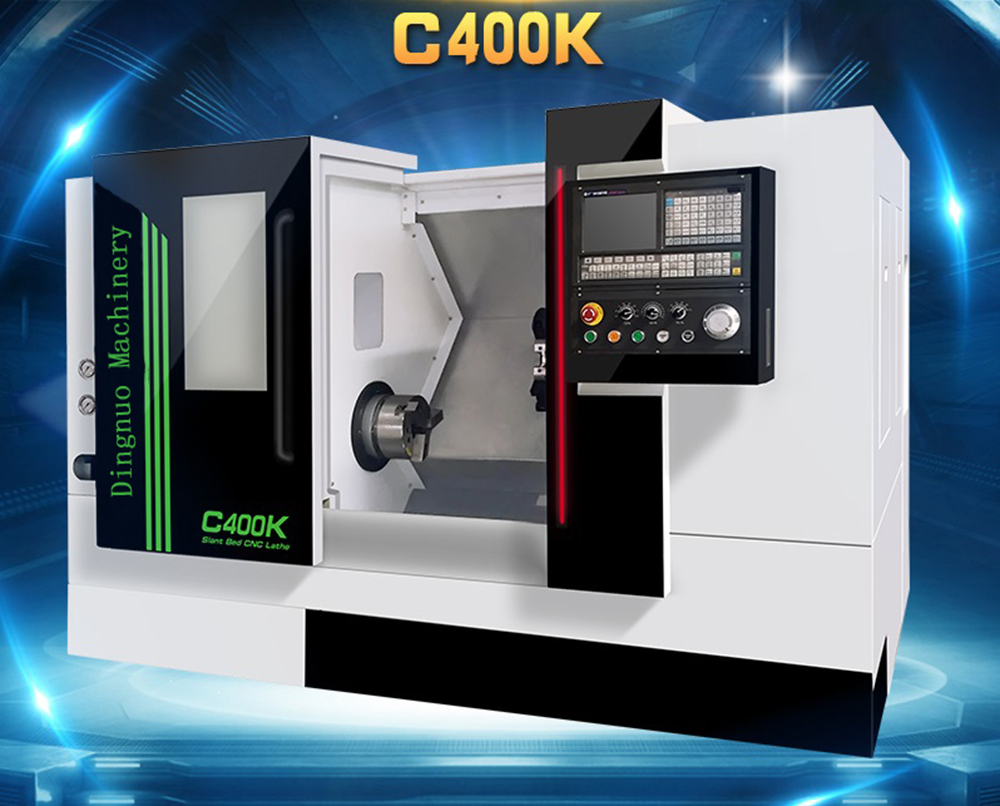

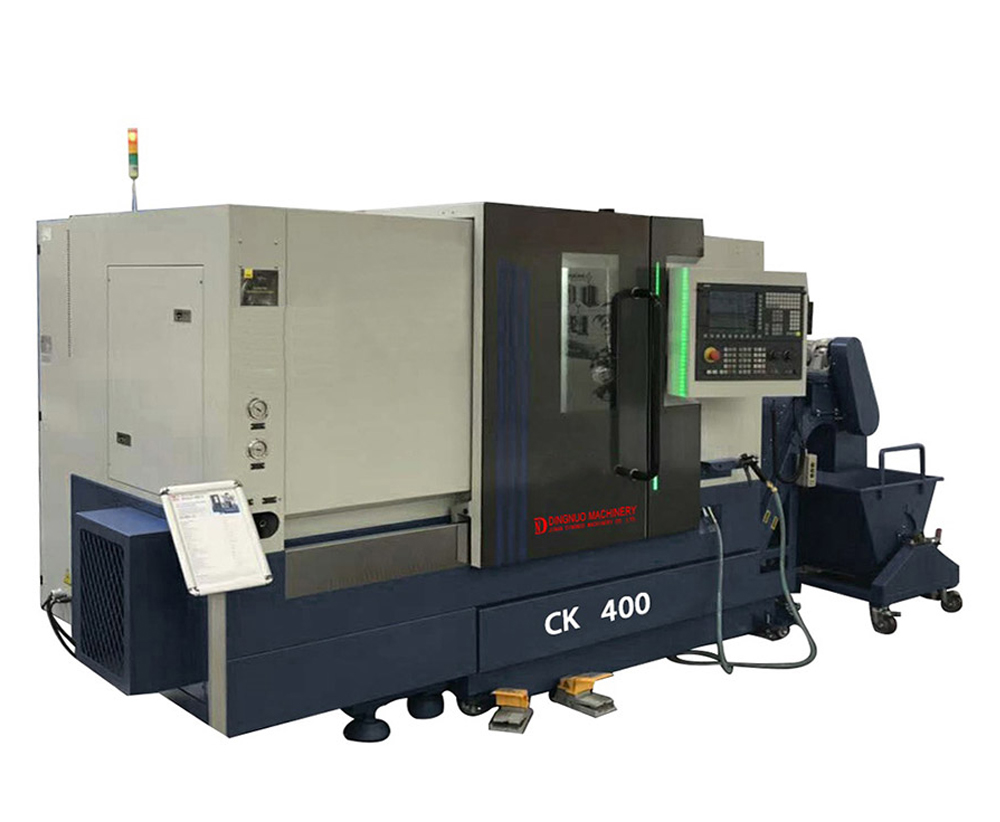

C400K
Order No.: Good quality 1
Stock: 24 Months warranty！！！
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 3000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. 8-12 position hydraulic turret, easy machining for complex parts.
| Configuration/Type | UNIT | C400K with CE | ||||
| Maximum Swing Over Bed | mm | 400 | ||||
| Maximum Swing Over Slide | mm | 250 | ||||
| Maximum Machining Length | Chuck | mm | 430 | |||
| Spindle Head Type | GB59001 | A2-6 | ||||
| Spindle Taper Hole | ø/mm | 62 | ||||
| Maximum Diameter of Bore | Manual Chuck | ø/mm | ||||
| Hydraulic Through Chuck | ø/mm | 48 | ||||
| Spindle Speed Range | r/min | 50-3000 | ||||
| Spindle Shift Mode | servo | |||||
| Spindle Rated Torque | Nm | 72 | ||||
| Main Motor Power | Kw | 11 | ||||
| Spindle Motor Maximum Speed Range(30 Min) | Kw | 15 | ||||
| Chuck Type | Hydraulic Through orNone ThroughChuck | |||||
| Chuck Size | ø/mm | 200 | ||||
| Rapid Traverse Speed On X/Z -axis | m/min | 16/20 | ||||
| Servo Motor Torque On X/Z -axis | Nm | 7.5/7.5 | ||||
| X/Z -axis Travel | mm | 200/450 | ||||
| Ball Screw | X-axis | mm | Oct-32 | |||
| Diameter / Thread | Z-axis | Dec-40 | ||||
| Guideway Type | PMI (Taiwan) Linear Guideway | |||||
| Linear Guideway width X/Z -axis | mm | 30/45 | ||||
| Turret Type | Electric 8/12Post Turret(PRAGATI) | |||||
| Turret Change Time | °/sec | 45/0.24 | ||||
| Turning Tools /Boring Bar Size | mm | 25*25/ø40 | ||||
| Hydraulic Tailstock Sleeve Diameter/Travel | mm | ø88/85 | ||||
| Tailstock Type | Hydraulic | |||||
| Internal Taper of Tailstock Sleeve | MT5 | |||||
| Dimension / Weight | L*W*H(mm) | 2610*1930*1800 / 2800KG | ||||
| Optional Configuration | ||||||
| Hydraulic Through Chuck (AUTOGRIP Made in Taiwan) | ø200mm | |||||
| SAUTER Post Turret(Germany) | ||||||
| Chips Conveyor | Hinge-Belt | |||||
