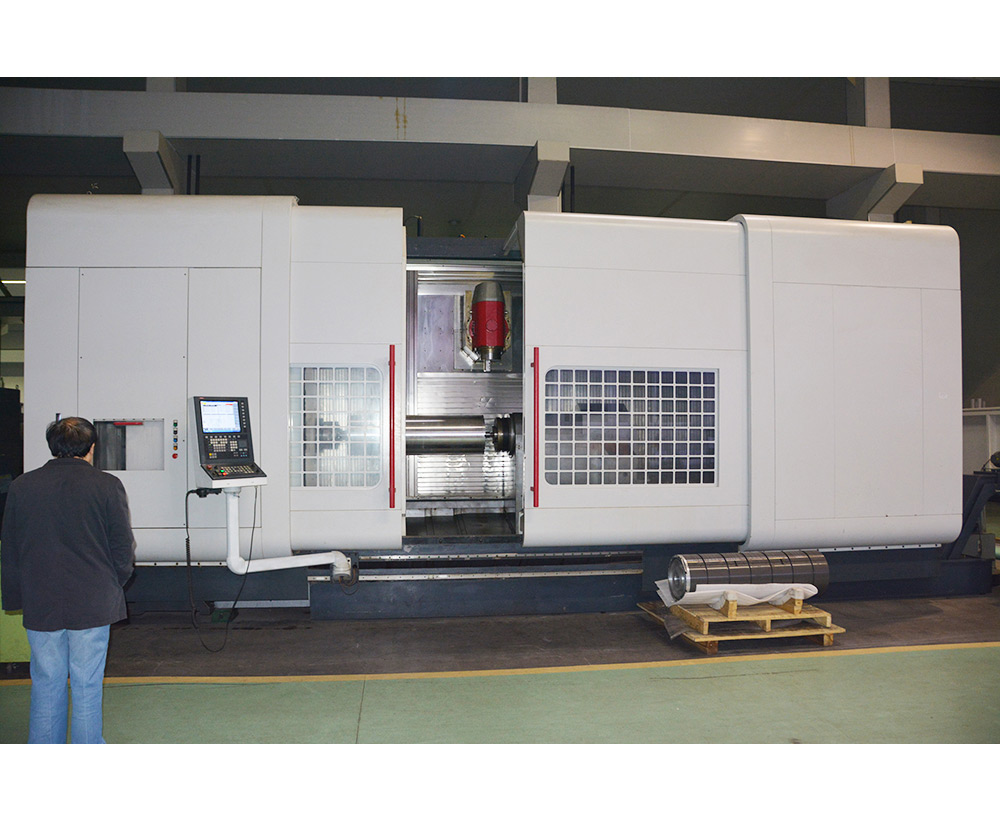

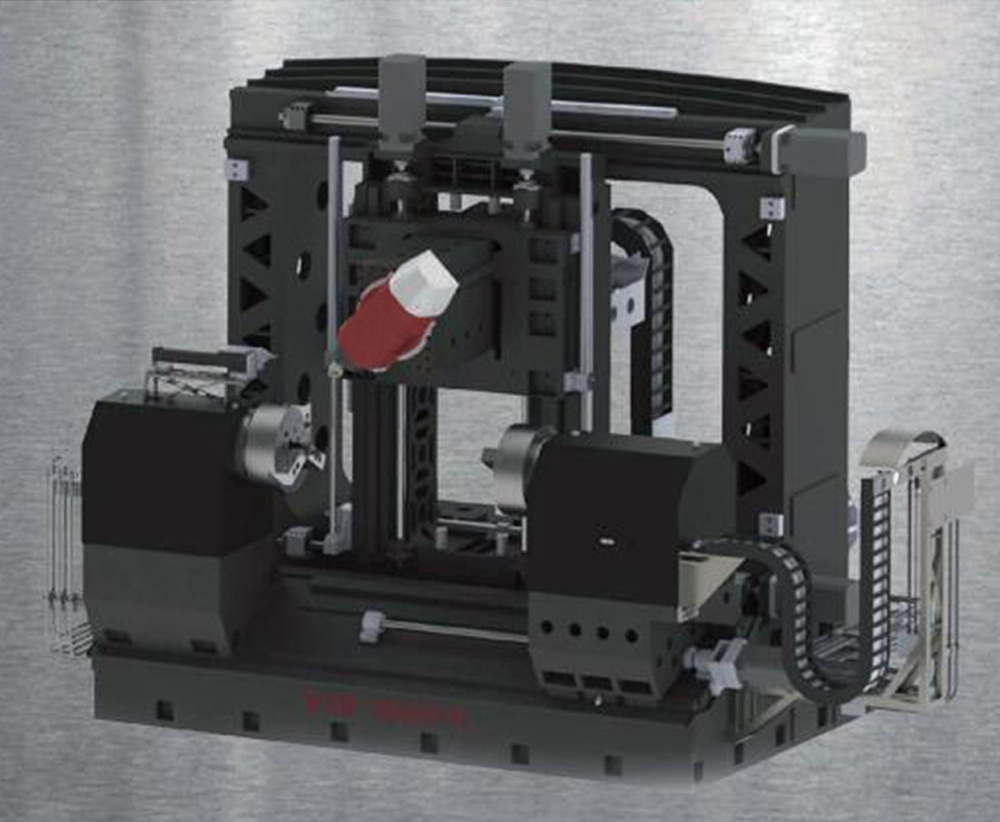

KDW-6600FH (5 axis)
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
| Model | KDW4600-FH | KDW6600-FH |
| Max. Swing over bed | 800mm | 1140mm |
| Max. Turning DIA | 700mm | 1000mm |
| Max. Turning length | 1200mm | 3000mm |
| Chuck size | 10（inch）/12（inch）▲ | 12（inch）/15（inch）▲ |
| X axis travel | 750（-20～+730）mm | 1020（-20～+1000）mm |
| Y axis travel | 460（±230）mm | 660（±330）mm |
| Z axis travel | 1550mm | 3188mm |
| W axis travel | 1550mm | 3060mm |
| B axis turned range | -130°～+130° | -130°～+130° |
| Tool Spindle type | Same step electric spindle | Same step electric spindle |
| Power（S1/S6) | 87/130Nm | 87/130Nm |
| Max. Spindle speed | 12000rpm | 12000rpm |
| Shank | HSK-A63 | HSK-A63 |
| Spindle Random location Orientation | V | V |
| Positioning lock | V | V |
| Electric spindle encoder | 256gears | 256gears |
| Suppler | WMZ/KD | WMZ/KD |
| Main spindle type | Same step electric spindle | Same step electric spindle |
| Power | 820Nm | 820Nm |
| Motor power | 64kw | 64kw |
| Max. speed | 4000rpm | 4000rpm |
| Spindle Random location Orientation | V | V |
| Positioning lock | V ▲ | V ▲ |
| Electric spindle encoder | Heidenhain | Heidenhain |
| Moving type | Torque motor drive directly | Torque motor drive directly |
| B axis spindle Power | 2200Nm | 2200Nm |
| Lock power | 2400Nm | |
| Encoder accuracy | ±6″ | |
| Physical line | 1024 |
