LX3016 LX3020 LX4026 LX4032 LX6040 LX8050
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

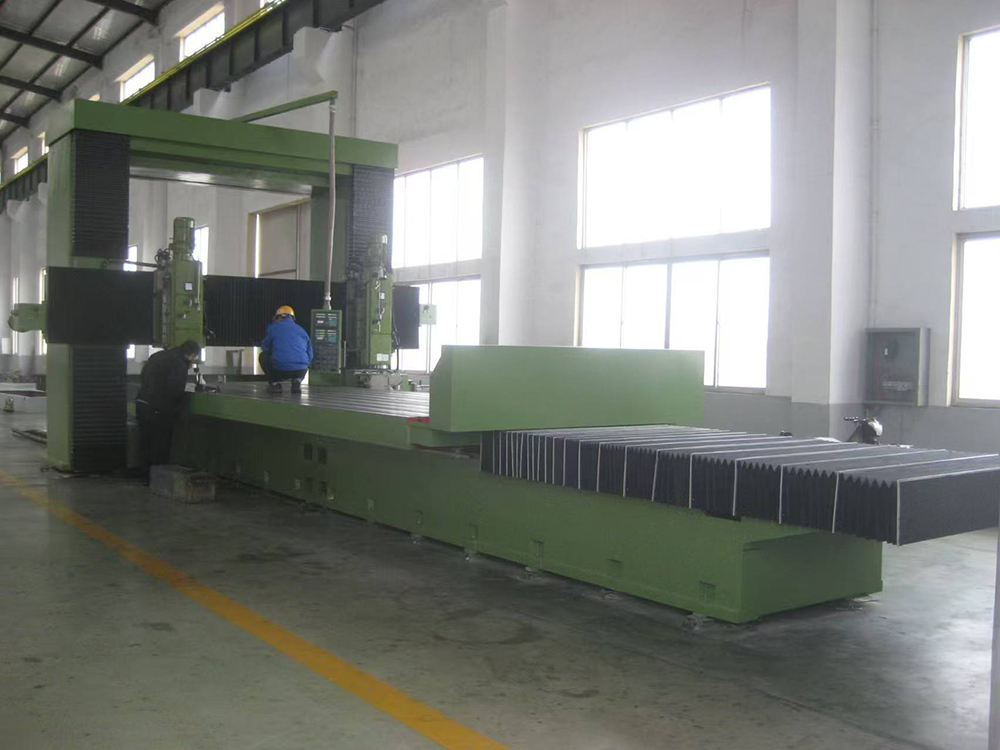

Characteristics of machine tool The XK series CNC gantry milling machine is a new generation ofeconomi-cal CNC machine tools, suitable for processing black metal,non-ferrous metal, and some non-metallic material workpieces withhigh-speed steel hard alloy cutting tools. lt can complete cutting process-es such as flat, high and low surfaces, inclined surfaces, curved surfaces.grooves, boring holes, and drilling holes.Workbench transmission method: Workbench ball screw transmission,driven by an AC servo system to achieve stepless adjustability and pre-cise positioning and repetitive positioning of the workbench.The two axis ball screw transmission of the vertical milling head is drivenby an AC servo system to achieve stepless adjustable working speed andprecise positioning and repeated positioning.All the basic components of the machine tool are processed and assem-bled by our company. The casting material is HT250 high-quality cast iron,which has undergone heat aging, vibration aging, and secondary agingtreatment to fully eliminate the internal stress of the casting. The bed, col-umns, and crossbeam guide rails have all undergone ultrasonic quenchingtreatment. The machine tool guide rail is equipped with a steel plate pro-tective cover, and the crossbeam and column are equipped with organtype protective covers. The machine tool uses internationally renownedSchneider Electric components and high-quality cables, ensuring reliablequality.
