DP6000
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

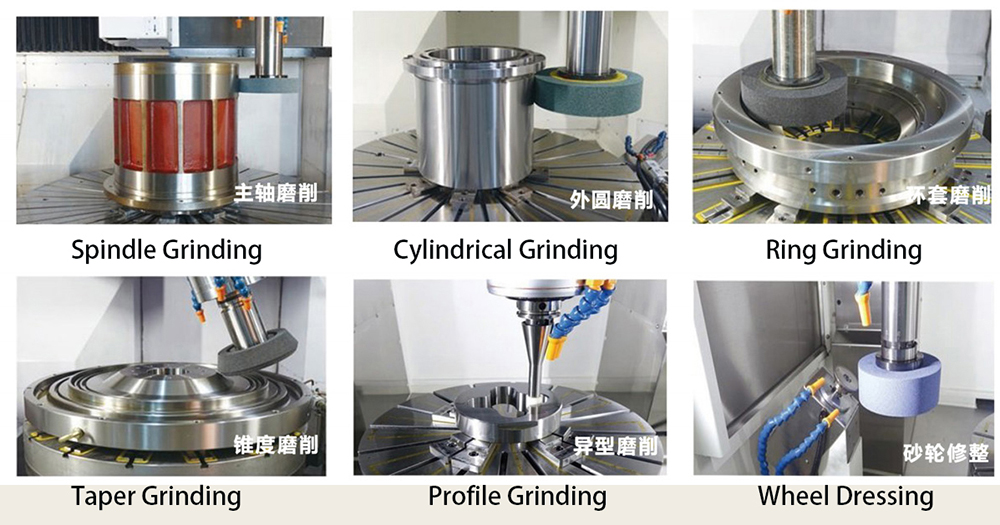

Main Applications it is suitable for grinding lD, OD, taper and endface of large wheels, gears etc.inner/outer raceways of extra-large bearing rings, All surfaces are ground in asingle clamping so that the position accuracy of the work pieces such as the perpendicularity of lD to endface or the perpendicularity of raceway to theendface may be kept at a high accuracy. lt is a new generation of grinding machine with high accuracy and high productivity suitable for mass and largebatch production of wheels, gears and bearing races of the wind powergenerator.
Main parameters
|
Grinding diameter range |
φ3600~φ6000mm |
|
Max grinding depth |
600mm |
|
Max.swing diameter of worktable |
φ6100mm |
|
(X1Axis,X2Axis)Strokeofhorizonta1slidesoncrossbeam(X1,X2) |
3000mm |
|
(Z1Axis、Z2Axis)Strokeofvertica1slide(Z1,Z2) |
800mm |
|
Swivel angle ofrotating unit (B) |
±50° |
|
ResolutionofAxisX1,Z1,X2,Z2 |
0.001mm |
|
Work spindle speed |
1~10r/min |
|
Total power |
190Kw |
|
Floor space of the machine |
14.2mX10m |
|
Machine weight |
200T |
Grinding Accuracy
|
Runout of lD/OD |
<0.01mm |
|
Gylindricity of D/OD |
<0.015/400mm |
|
Flatness of endface |
<0.006/200mm |
|
Surface roughness of lD/oD |
< Ra0.4um |
|
Surface roughness of endface |
<Ra0.4um |
