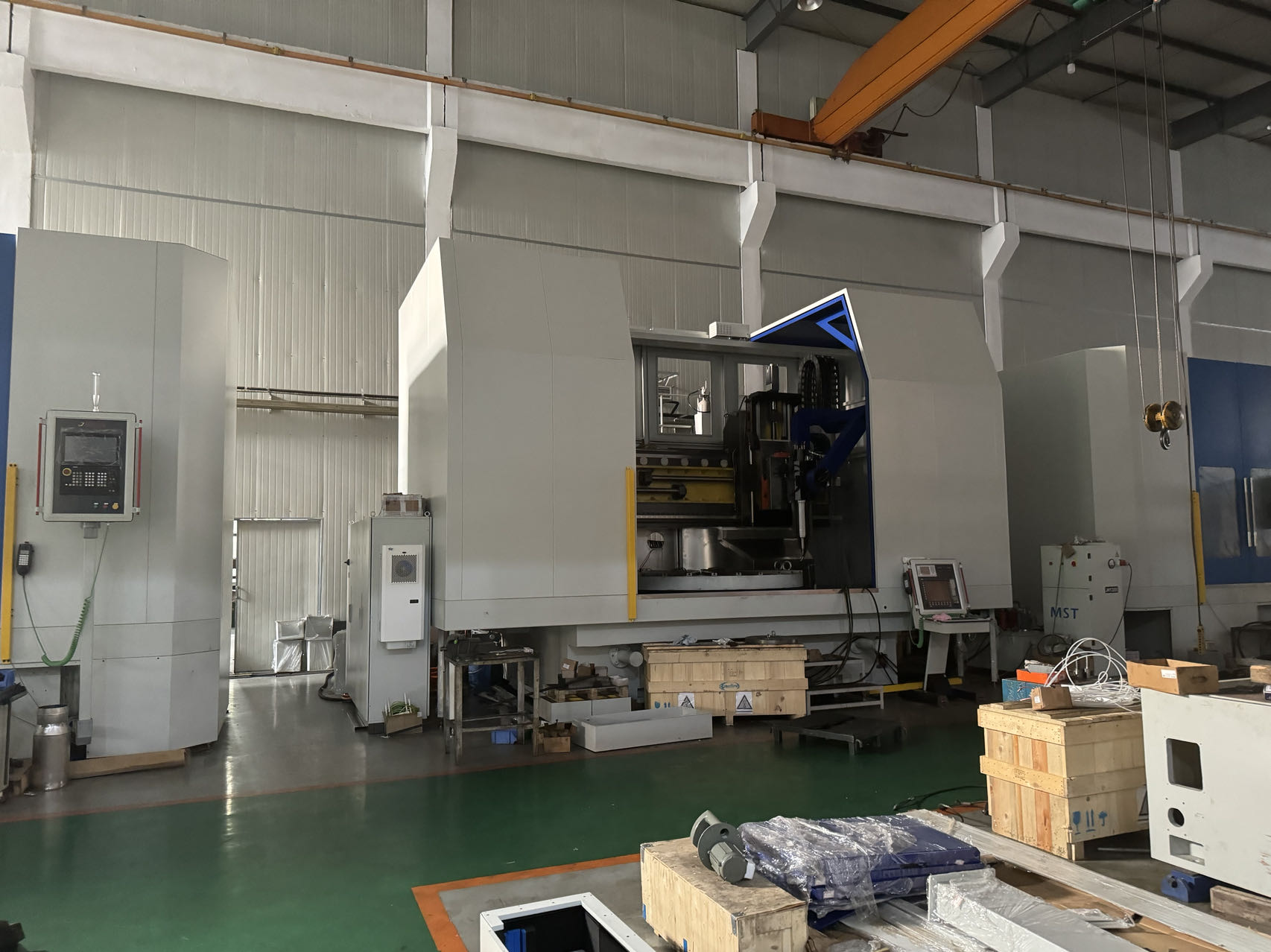

DP1800
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:
Main uses and scope of application: Mainly used for grinding the inner hole, outer circle, cone surface, end surface of large disc sleeve and housing parts and grinding the inner and outer raceway surfaces of extra-large bearings. Grinding of each surface is completed in one clamping. The position accuracy of each grinding surface is guaranteed. It is a new generation of high-precision and high-efficiency production machine tools. This machine tool is particularly suitable for mass production of extra-large gears, housings, bearing rings, etc.
Working accuracy
Flatness of end face 0.01mm
Verticality of end face to inner and outer circles 0.015mm
Surface roughness of end face Ra 0.8μm
Roundness of inner and outer circles 0.006mm
Cylindricity of inner and outer circles 0.01mm
Surface roughness of inner and outer circles Ra 0.4μm
Coaxiality of inner and outer circles 0.008mm
Main scale and parameters
Grinding aperture ф250～1600mm
Maximum grinding depth 500mm
Maximum grinding outer diameter ф1800mm
Diameter of rotary table ф1800mm
Maximum rotating diameter of work piece ф2000mm
Maximum grinding end face width 600mm
Left slide travel of crossbeam (X1 axis) 1700mm
Right slide travel of crossbeam (X2 axis) 1700mm
Up and down reciprocating travel of left grinding frame (Z1 axis) 650mm
Right grinding frame up and down reciprocating stroke (Z2 axis) 650mm
Left and right grinding frame rotation angle ±30°
Work piece spindle speed (frequency conversion speed regulation) 3~60r/min
X1, X2, Z1, Z2 axis maximum speed 10m/min
X1, X2, Z1, Z2 axis resolution 0.001mm
Worktable maximum bearing 10000kg
Total machine power 52kw
Casing outlet width 2000mm
Machine tool dimensions 4750×4160×4180mm
Machine tool weight 35000kg
