DP28125
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

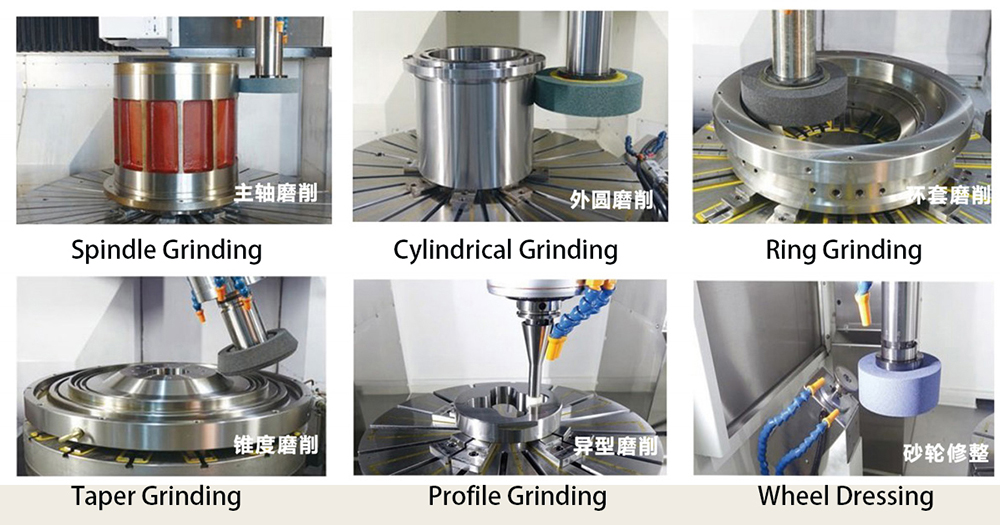

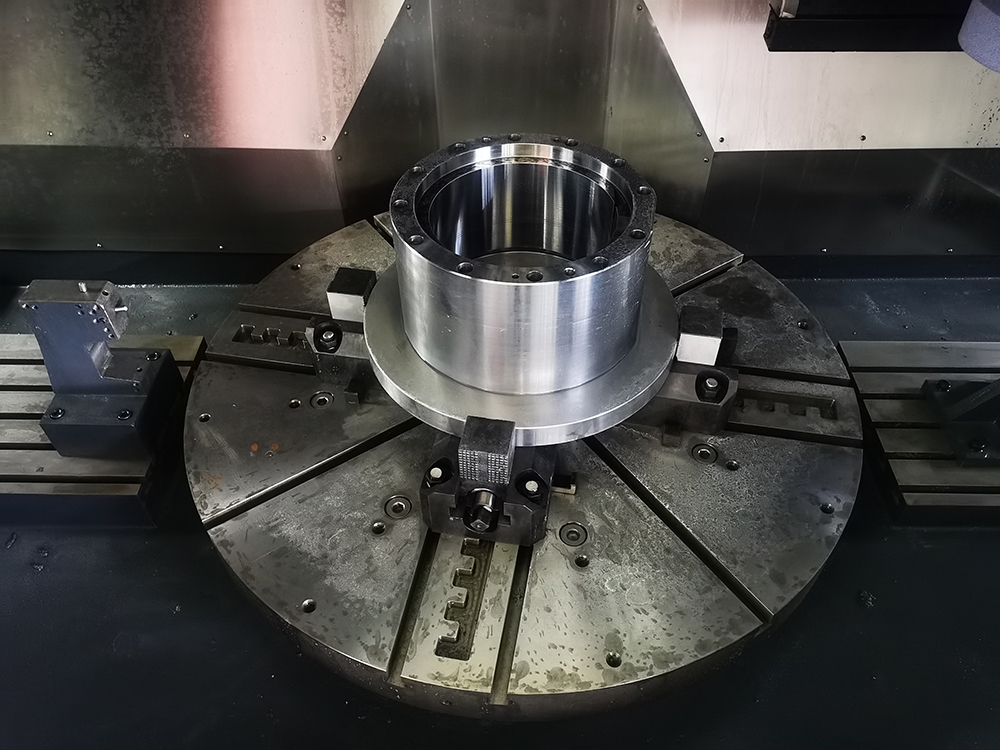

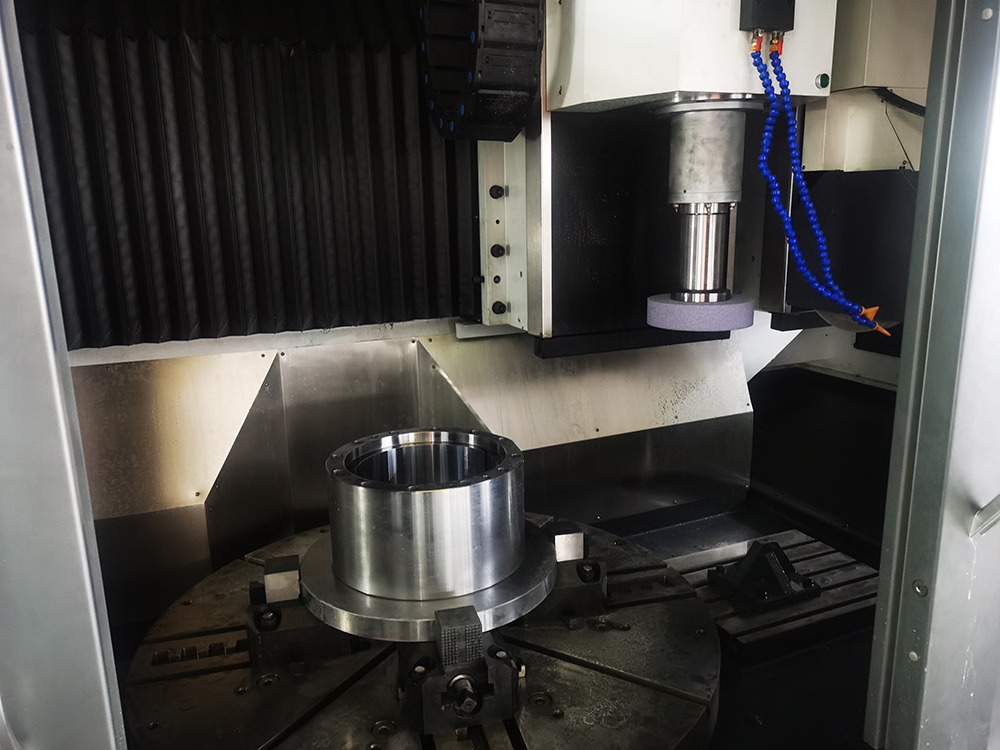

Main uses and scope of application: It is mainly used for precision grinding of various surfaces such as medium and large bearing rings and super finishing of raceways. The grinding of each surface is completed in one clamping, and the raceways after grinding are super finished, which reduces the impact of parts hoisting and secondary clamping on the accuracy of the workpiece and improves the production efficiency of finished parts. It is a new generation of high-precision and high-efficiency production machine tools. There are currently no such machine tools at home and abroad. This machine tool is particularly suitable for mass production of medium and large bearing ring parts with high requirements for finishing accuracy and surface quality.
|
磨超孔径 |
Bore diameter to be ground and super finished |
φ250~1250mm |
|
最大磨超深度 |
Max.depth to be ground and super finished |
500mm |
|
最大磨超外径 |
Max.OD to be ground and super finished |
φ1300mm |
|
回转工作台直径 |
Diameter of the worktable |
φ1400mm |
|
工件最大回转直径 |
Max.swinging of the work piece over worktable |
φ1500mm |
|
横梁滑板行程(X1、X2轴) |
Moving stroke of the slide on the cross beam(Axis X1,X2) |
1400mm |
|
头架上、下往复行程(Z1、Z2轴) |
Up and down reciprocating moving stroke of the vertical slide(Axis Z1,Z2) |
650mm |
|
左右头架回转角度 |
Swiveling angle of left and right heads |
±20° |
|
工件主轴转速(无级调速) |
Work spindle speed (speed varied by frequency converter) |
10-80r/min |
|
X、Z轴最高速度 |
Max.moving speed of Axis X,Z |
6m/min |
|
X、Z轴分辨率 |
Resolution of Axis X,Z |
0.001mm |
|
工作台最大承重 |
Max.loading capacity of the worktable |
4000kg |
|
机床总功率 |
Total power |
75kw |
|
机床外形尺寸 |
Overall dimension ofthe machine |
5000×4000×4600mm |
|
机床占地面积 |
Occupied area of the machine |
5000x5600x4600mm |
|
机床重量 |
Weight of the machine |
38000kg |
Grinding accuracy
|
内、外圆圆度 |
Roundness of both ID &OD |
0.003mm |
|
内、外圆圆柱度 |
Cylindricity of both ID&OD |
0.005mm |
|
内、外圆同轴度 |
Coaxality between ID&OD |
0.005mm |
|
端面与内外圆的垂直度 |
Perpendicularity of the endface to both ID&OD |
0.005mm |
|
表面粗糙度 |
Surface roughness of the raceways Ra |
0.1μm |
