HONGYU CLES AIR CONDITIONING

Vertical Grinder

DP600

Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool

Key Features:

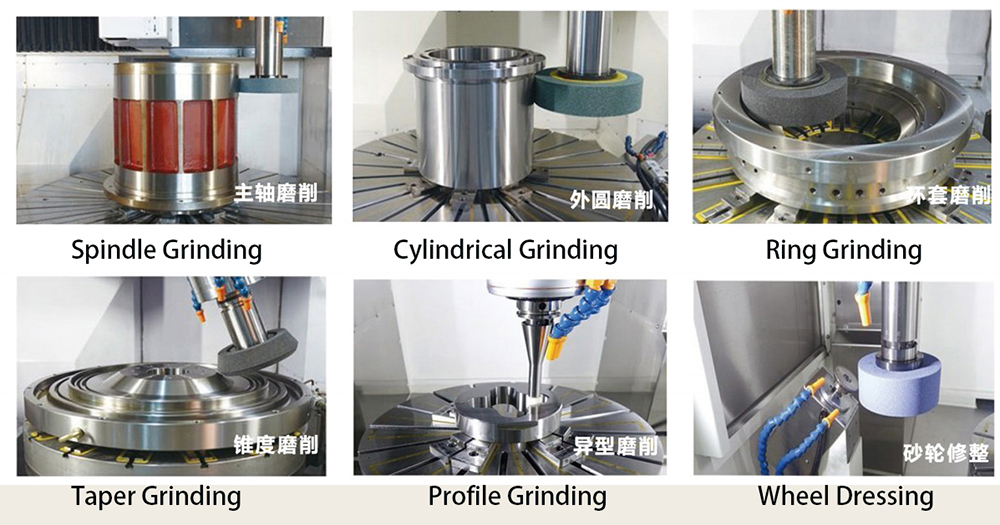

Main Application: lt is mainly used for grinding lD,OD,taper surface and endface ofthe gears andbearing rings etc,with one chucking so that the positioning accuracy ofthe work-parts can be ensured.it is a new generation high precision and high sffciency grinding machine of production type. The grinding cycle can be autoraticlly car-ried out except loading and unloading operations, it is especially suitable formass production of gears and bearing rings.

磨削孔径

ID to be ground

φ50mm~φ500mm

最大磨削深度

Maximum grinding bore length

450mm

最大磨削外径

OD to be ground

φ600mm

回转工作台(电磁吸盘)直径

Diameter of the worktable(electro-magnetic chuck)

φ600mm

工件最大回转直径

Max.swing diameter of the worktable

φ630mm

横梁左滑板行程(X1轴)

Stroke of left horizontal slide on cross beam(AxisX1)

800mm

横梁右滑板行程(X2 轴)

Stroke of right horizontalslide on cross beam(AxisX1)

800mm

左磨架上、下往复行程(Z1轴)

Stroke of left vertical slide(AxisZ1)

550mm

右磨架上、下往复行程(Z2轴)

Stroke of right vertical slide(Axis Z2)

550mm

工件主轴转速(无级调速)

Workspindle speed(steplessspeed change)

20~180r/min

X1、X2、Z1、Z2 轴最高速度

Max.moving speed of AxisX1,X2,Z1 and Z2

6m/min

X1、X2、Z1、Z2 轴分辨率

Resolution of AxisX1,X2,Z¹and Z2

0.001mm

工作台最大承重

Max.loading ability of worktable

800kg

机床总功率

Total power

75KW

机床外形尺寸

Overalldimension of the machine

3400x2400×3100mm

机床占地面积

Foorspace of the machine

4600x3700x3100mm

机床重量

Weight of the machine

15000kg
