DP400
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

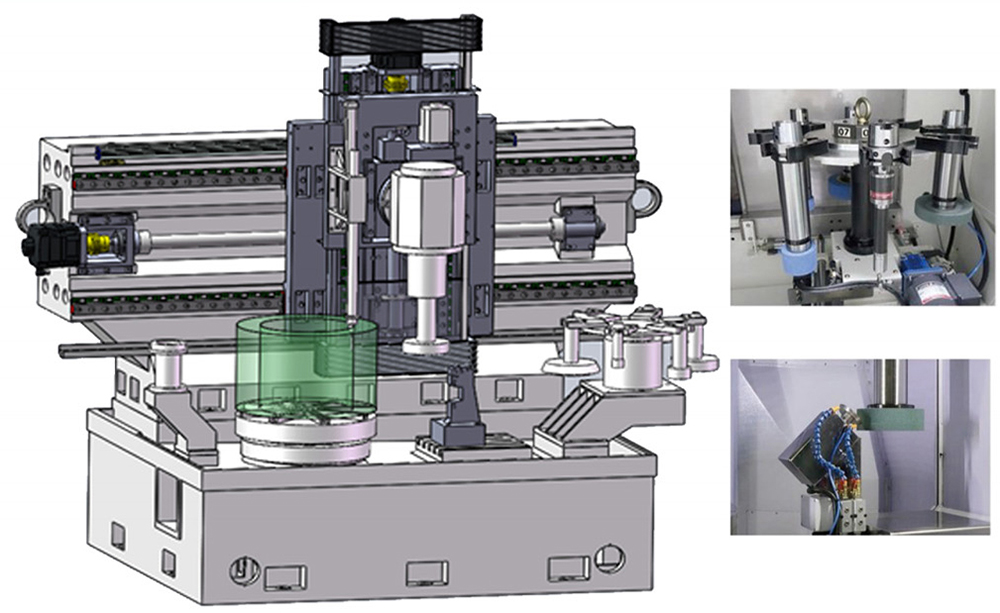

Main Application: It is mainly used for precision grinding of iD, OD, end faces, and conical surfaces of disk-shaped parts such as gears, bearings, and shaft sleeves, The grinding of each surface is completed at one time to ensure the position accuracy of each grinding surface, lt is a new generation of high-precision and high-efficiency production machine tools, The entire grinding cycle of the machine tool is automatically completed, and the operator only needs to assemble and disassemble the work-piece. This machine tool is especially suitable for mass production of gears and bearing rings.
Main Specifications
|
立磨头磨削孔径 |
|
Ф50mm~0350mm |
|
最大磨削深度 |
Maximum grinding bore length |
300mm |
|
最大磨削外径 |
OD to be ground |
Ф400mm |
|
工件最大回转直径 |
Max. swing diameter of the worktable |
Ф400mm |
|
横粱滑板行程(X1、X2轴) |
Stroke of horizontal slide on cross beam(Axis X1 and X2] |
600mm |
|
磨架上、下往复行程(Z1、Z2轴) |
Stroke ofvertical slide(Axis Z1and Z2) |
420mm
|
|
工件主轴转速(无级调速) |
Work spindle speed(stepless speed change) |
10~300r/min |
|
X1、X2、Z1、Z2轴最高速度 |
Max, moving speed of Axis X1,X2,Z1 and 22 |
6m/min |
|
X1、X2、Z1、Z2轴分辨率 |
Resolution of Axis X1.X2,Z1 and Z2 |
0.001mm |
|
工作台最大承重 |
Max. loading ability of worktable |
200kg |
|
机床总功率 |
Total power |
55KW |
|
机床外形尺寸 |
Overall dimension of the machine |
2600x2350x2800mm |
|
机床重量 |
Weight of the machine |
8500kg |
