BM40i
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

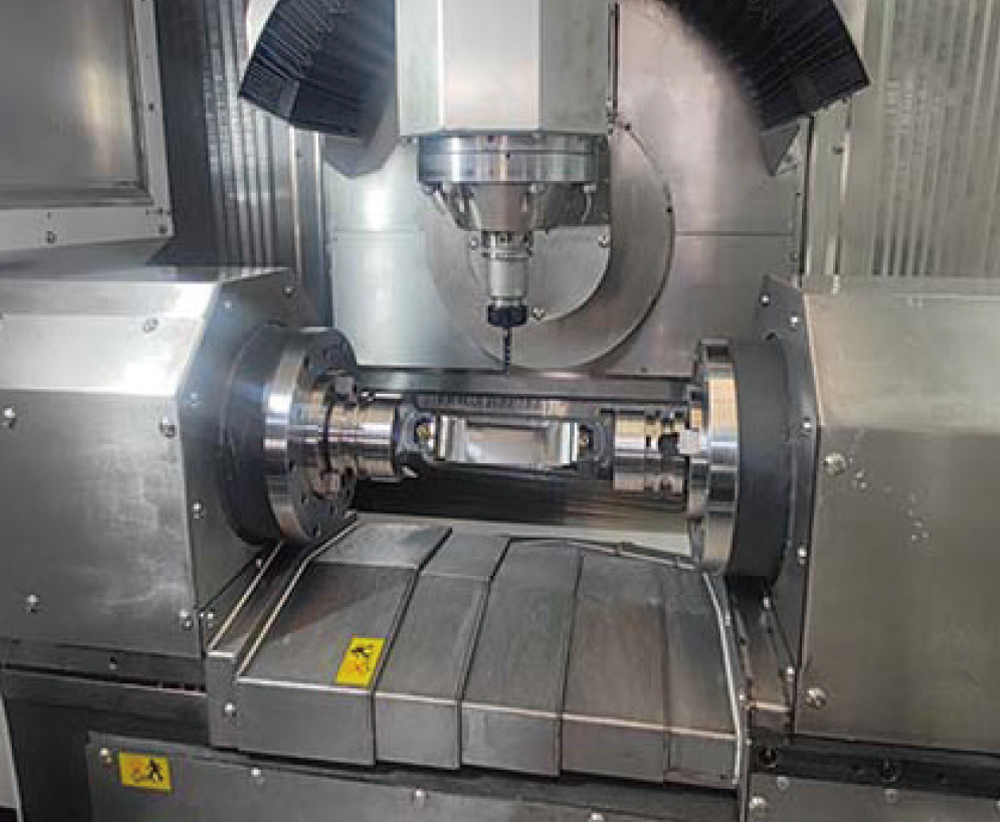

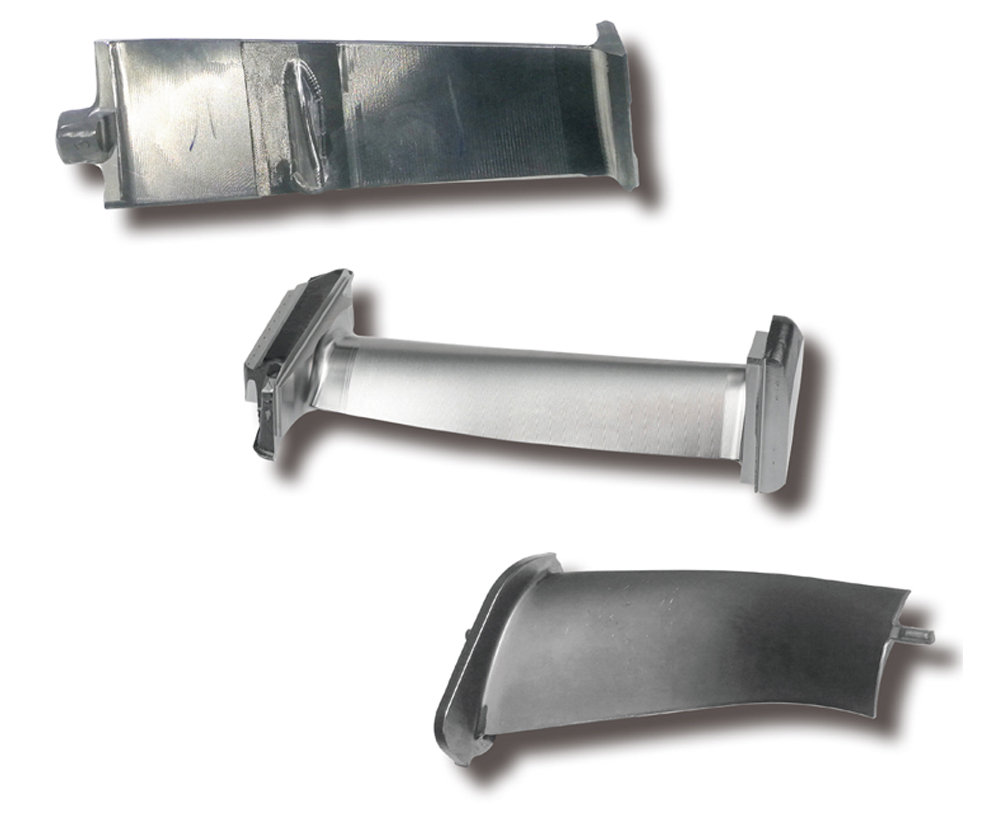

5-AXIS SIMULTANEOUS BLADE MILLING MACHINING CENTER Application: Suitable for precision batch and efficient processing of civil aircraft engines,small and medium-sized gas turbine blades and other parts. Highlights:Highlydynamic five-axis linkage milling,high dynamicresponse ofA/B axis. High-precision spindle and high-rigidity rotary table ensure the high precision,high efficiency and high reliability of the whole machine.
|
|
Spec. |
Unit |
BM40-5i |
BM80-5i |
BM100-5i |
|
Stroke |
Xaxis |
mm |
500 |
1200 |
1400 |
|
|
Yaxis |
mm |
300 |
360 |
400 |
|
|
Zaxis |
mm |
450 |
450 |
500 |
|
Spindle |
Max.power |
kW |
39 |
43 |
40 |
|
|
Max.speed |
rpm |
17000 |
20000 |
15000 |
|
|
Max.distance betweenhead and tailstock spindle end faces |
mm |
500 |
1000 |
1200 |
|
A/Baxis |
Aaxisrotation angle |
degree |
360 |
360 |
360 |
|
|
B axisrotation angle |
degree |
±40 |
±40 |
±50 |
|
|
A axis max.rotation diameter |
mm |
φ300 |
φ400 |
φ400 |
|
|
A axismax.speed |
rpm |
120 |
150 |
200 |
|
|
B axismax.speed |
rpm |
30 |
70 |
50 |
|
Feed system |
X/Y/Zrapid traverse |
m/min |
30 |
40 |
40 |
|
|
X/Y/Z feed rate |
mm/min |
12000 |
12000 |
12000 |
|
Accuracy |
X/Y/Zpositioning |
mm |
0.009 |
0.008 |
0.008 |
|
|
X/Y/Z repeatability |
mm |
0.006 |
0.005 |
0.005 |
|
|
A/B positioning |
arcsec |
6 |
8 |
8 |
|
|
A/B repeatability |
arcsec |
4 |
4 |
4 |
|
Tool magazine |
Tool holder |
|
HSKA63 |
HSKA63 |
HSK A63 |
|
|
Magazine capacity |
set |
16 |
20 |
24 |
|
|
Max.tool diameter (with adjacent) |
mm |
φ106 |
φ75 |
φ75 |
|
|
Max.tool diameter (without adjacent) |
mm |
φ130 |
φ130 |
φ110 |
|
|
Max.toollength |
mm |
200 |
200 |
250 |
|
|
Max.tool weight |
kg |
8 |
8 |
7 |
|
Machine size |
L×WXH |
mm |
4500×4800×3400 |
6500×2700×3500 |
6500×2510×3550 |
|
|
Floorspace |
m² |
21 |
23 |
24 |
|
|
Net weight |
t |
11 |
11 |
