MK2200
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/@Chinamachinetool
Key Features:

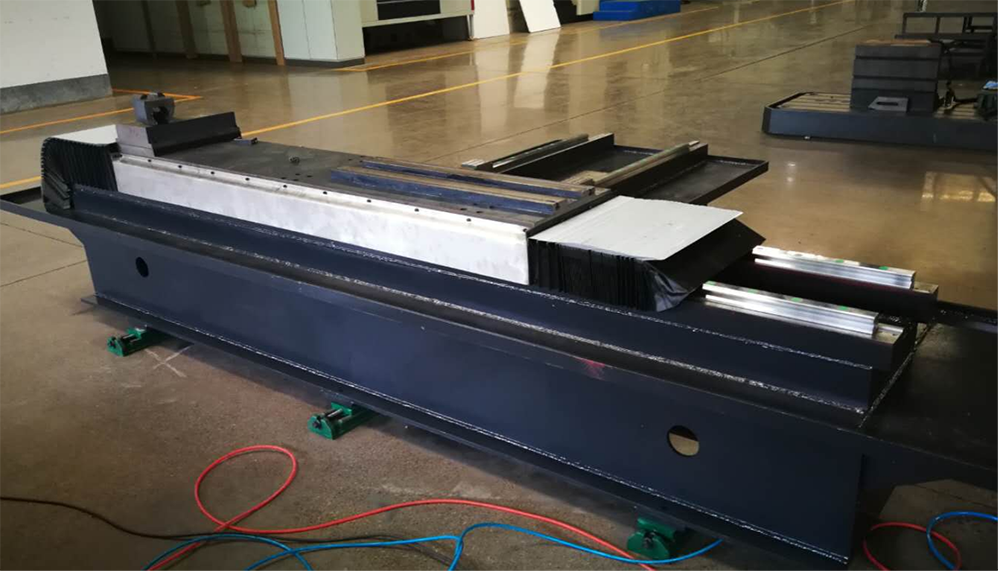

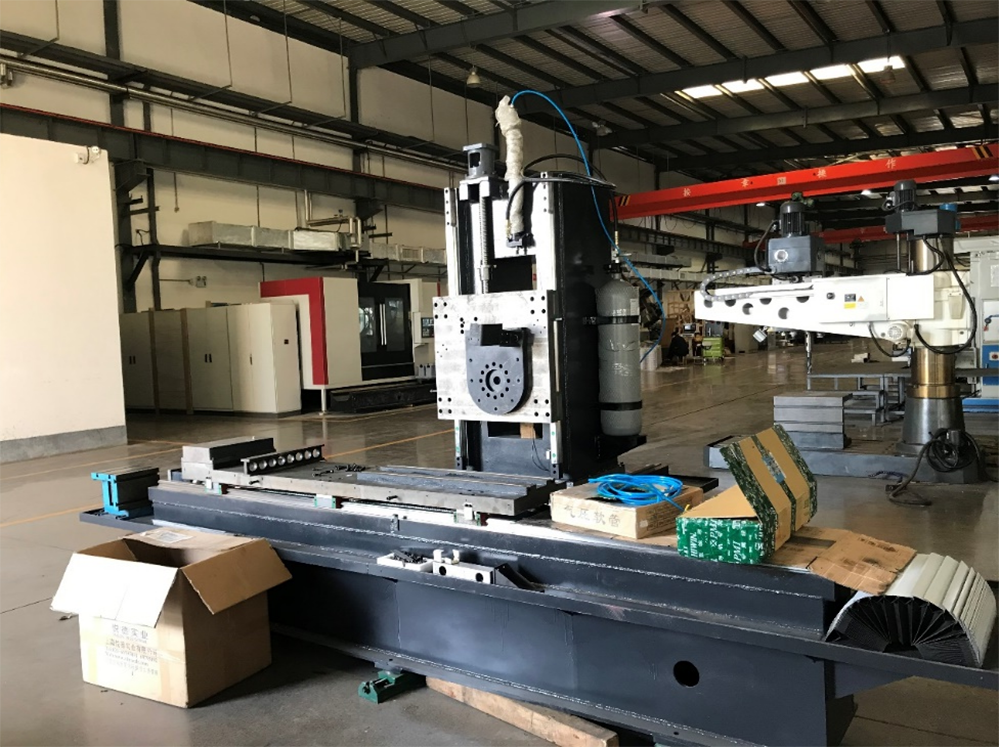

Background and scope of application of the program: The design of MK2200 six-axis linkage CNC belt grinder is based on WTB's many years of experience in CNC belt grinding and actual requirements, and is designed for the CNC grinding and polishing of the profile and inlet and outlet edges of steam turbine and gas turbine blades with a blade length of less than 2200mm and a chord width of less than 600mm.
Specifications and performance parameters
|
Product model |
MK-2200 |
|
|
Maximum clamping length |
750mm——2400 mm（Including fixture and connection plate） |
|
|
Maximum rotation diameter of A axis |
φ640mm |
|
|
Machine tool processing range |
Maximum clamping space: φ640×2400 (length) mm; Maximum load-bearing capacity: (blade + fixture) ≯300KG Pneumatic center telescopic range 40mm Tailstock maximum adjustment range 1650mm |
|
|
Travel |
X |
2200 mm |
|
Y |
600mm |
|
|
Z |
600mm |
|
|
A axis |
360 °continuous |
|
|
B axis |
±45 ° |
|
|
C axis |
±95 ° |
|
|
Speed |
X axis |
15m/min |
|
Y、Z axis |
15m/min |
|
|
A axis |
Max22r/min |
|
|
B axis |
Max22r/min |
|
|
C axis |
Max22 r/min |
|
|
|
grinding feed speed |
Max10000mm/min |
|
分辨率 |
X、Y、Z axis |
0.001mm |
|
A、B、C axis |
0.001 Spend |
|
|
Machine tool accuracy: |
Linear axis positioning accuracy: P ≯0.05mm Rotary axis positioning accuracy: P ≯±30 ″ |
|
|
Belt grinding unit |
Belt speed |
0-45M/S |
|
Belt width |
10-30mm |
|
|
Belt grinding motor power |
5.5KW about |
|
|
Belt length |
3300--3500mm Wide range adjustable |
|
|
Grinding contact force |
1N—160N |
|
|
Contact wheel diameter |
φ 120、 φ 160、 φ200 |
|
|
Drive wheel diameter |
φ240 |
|
|
Intermediate gear train diameter |
> φ 100mm |
|
|
Power requirements |
|
Three-phase AC 380V50Hz |
|
Full load current |
|
60A |
|
Compressed air pressure |
|
0.4-0.6Mpa |
|
Machine dimensions |
Length×Width × Height |
6300mm×2600mm×2800mm |
|
Machine net weight |
|
10500kg |
